Below is a sample configuration of enabling interprovider option B VPN between Juniper and Cisco-IOS. The configuration assumes two service providers are interconnected across ASBR routers (ASBR1 and ASBR2), MPLS and LDP are enabled across each of the domains for MPLS label exchange, and one VRF has been created across these two domains.

Symptoms

Solution

Assumptions and Topology:

Assumptions:

Two service providers are interconnected across two ASBR routers (ASBR1 and ASBR2)
MPLS and LDP is enabled across each of these domains for MPLS label exchange.
One VRF has been created across these two domains, bind with a loopback 100 interface at each of the PE routers into the VRF.

Note: The procedure presented here is written with the assumption that the reader is already familiar with MPLS MVPN configuration.

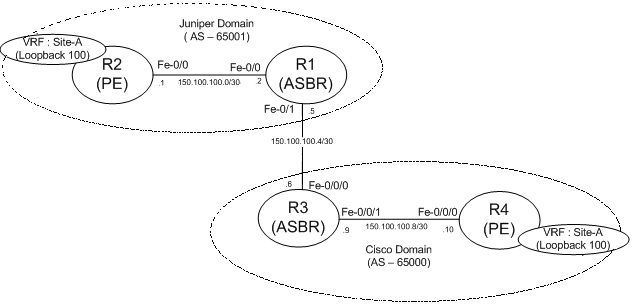

Topology:

Configuration:

For this example the following Software components were used:

Junos: 9.5
Cisco IOS : 12.3(25)

R2 (PE) configuration
==============

root@R2# show
system {
               host-name R2;
}
interfaces {
        fe-0/0 {
               unit 0 {
                      family inet {
                                address 150.100.100.1/30;
                      }
                      family mpls;
               }
       }
       lo0 {
              unit 0 {
                     family inet {
                               address 172.100.100.2/32;
                        }
            }
            unit 100 {
                     family inet {
                               address 100.100.100.1/32;
                       }
             }
       }
}
routing-options {
            autonomous-system 65001;
}
protocols {
           mpls {
                   interface fe-0/0.0;
           }
           bgp {
                group IBGP {
                           type internal;
                           local-address 172.100.100.2;
                           family inet-vpn {
                                           unicast;
                           }
                           neighbor 172.100.100.1;
                   }
             }
            ospf {
                  area 0.0.0.0 {
                          interface fe-0/0.0;
                          interface lo0.0 {
                                       passive;
                          }
                  }
           }
           ldp {
                interface fe-0/0.0;
                interface lo0.0;
         }
}
routing-instances {
         Site-A {
               instance-type vrf;
               interface lo0.100;
               route-distinguisher 65001:1;
               vrf-target target:100:1;
       }
}

R1 ( ASBR) configuration
===================

root@R1# show
system {
             host-name R1;
}
interfaces {
             fe-0/1 {
                     unit 0
                         family inet {
                                   address 150.100.100.5/30;
                         }
                         family mpls;
                   }
           }
           fe-0/0 {
                     unit 0 {
                         family inet {
                                   address 150.100.100.2/30;
                        }
                        family mpls;
                }
          }
          lo0 {
                  unit 0 {
                         family inet {
                               address 172.100.100.1/32;
                         }
                }
         }
}
routing-options {
             autonomous-system 65001;
}
protocols {
         mpls {
              interface fe-0/0.0;
              interface fe-0/1.0;
        }
        bgp {
            group IBGP {
                          type internal;
                          local-address 172.100.100.1;
                          family inet-vpn {
                                          unicast;
                          }
                         neighbor 172.100.100.2 {
                         export next-hop-self;
                      }
           }
           group EBGP {
                       type external;
                       family inet-vpn {
                                        unicast;
                      }
                      peer-as 65000;
                      neighbor 150.100.100.6;
                }
          }
          ospf {
               area 0.0.0.0 {
                       interface fe-0/0.0;
                       interface lo0.0 {
                                 passive;
                          }
                 }
          }
         ldp {
            interface fe-0/0.0;
            interface lo0.0;
      }
}
policy-options {
         policy-statement next-hop-self {
                       term A {
                               from {
                                    protocol bgp;
                                    neighbor 150.100.100.6;
                              }
                              then {
                                   next-hop self;
                         }
                 }
          }
}

R3 (ASBR) Configuration
====================

 R3#sh run
 Building configuration...

 Current configuration : 1420 bytes
 !
 version 12.3
 service timestamps debug datetime msec
 service timestamps log datetime msec
 no service password-encryption
 !
 hostname R3
 !
 boot-start-marker
 boot-end-marker
 !
 no logging console
 !
 no aaa new-model
 ip subnet-zero
 !
 !
 ip cef
 no ip domain lookup
 !
 !
 interface Loopback0
 ip address 172.100.100.3 255.255.255.255
 !
 interface FastEthernet0/0
 no ip address
 shutdown
 duplex half
 !
 interface FastEthernet1/0
 ip address 150.100.100.6 255.255.255.252
 duplex auto
 speed auto
 !
 interface FastEthernet1/1
 ip address 150.100.100.9 255.255.255.252
 duplex auto
 speed auto
 mpls label protocol ldp
 tag-switching ip
 !
 router ospf 100
 log-adjacency-changes
 network 150.100.100.9 0.0.0.0 area 0
 network 172.100.100.3 0.0.0.0 area 0
 !
 router bgp 65000
 no synchronization
 no bgp default route-target filter
 bgp log-neighbor-changes
 neighbor 150.100.100.5 remote-as 65001
 neighbor 172.100.100.4 remote-as 65000
 neighbor 172.100.100.4 update-source Loopback0
 no auto-summary
 !
 address-family vpnv4
 neighbor 150.100.100.5 activate
 neighbor 150.100.100.5 send-community extended
 neighbor 172.100.100.4 activate
 neighbor 172.100.100.4 next-hop-self
 neighbor 172.100.100.4 send-community extended
 exit-address-family
 !
 ip classless
 no ip http server
 !
 !
 line con 0
 exec-timeout 0 0
 logging synchronous
 stopbits 1
 line aux 0
 stopbits 1
 line vty 0 4
 !
 !
 end

 R3#

R4 (PE) Configuration
=================

 R4#sh run
 Building configuration...

 Current configuration : 1501 bytes
 !
 version 12.3
 service timestamps debug datetime msec
 service timestamps log datetime msec
 no service password-encryption
 !
 hostname R4
 !
 boot-start-marker
 boot-end-marker
 !
 no logging console
 !
 no aaa new-model
 ip subnet-zero
 !
 !
 ip cef
 no ip domain lookup
 !
 ip vrf SITE-A
 rd 65000:1
 route-target export 100:1
 route-target import 100:1
 !
 interface Loopback0
 ip address 172.100.100.4 255.255.255.255
 !
 interface Loopback100
 ip vrf forwarding SITE-A
 ip address 100.100.100.2 255.255.255.255
 !
 interface FastEthernet0/0
 no ip address
 shutdown
 duplex half
 !
 interface FastEthernet1/0
 ip address 150.100.100.10 255.255.255.252
 duplex auto
 speed auto
 mpls label protocol ldp
 tag-switching ip
 !
 interface FastEthernet1/1
 no ip address
 shutdown
 duplex auto
 speed auto
 !
 router ospf 100
 log-adjacency-changes
 network 150.100.100.10 0.0.0.0 area 0
 network 172.100.100.4 0.0.0.0 area 0
 !
 router bgp 65000
 no synchronization
 bgp log-neighbor-changes
 neighbor 172.100.100.3 remote-as 65000
 neighbor 172.100.100.3 update-source Loopback0
 no auto-summary
 !
 address-family vpnv4
 neighbor 172.100.100.3 activate
 neighbor 172.100.100.3 send-community extended
 exit-address-family
 !
 address-family ipv4 vrf SITE-A
 redistribute connected
 no auto-summary
 no synchronization
 exit-address-family
 !
 ip classless
 no ip http server
 !
 line con 0
 exec-timeout 0 0
 logging synchronous
 stopbits 1
 line aux 0
 stopbits 1
 line vty 0 4
 !
 !
 end

 R4#

Commands to verify the operation

R4#sh ip bgp vpnv4 all BGP table version is 41, local router ID is 172.100.100.4 Status codes: s suppressed, d damped, h history, * valid, > best, i - internal, r RIB-failure, S Stale Origin codes: i - IGP, e - EGP, ? - incomplete Network Next Hop Metric LocPrf Weight Path Route Distinguisher: 65000:1 (default for vrf SITE-A) *>i100.100.100.1/32 172.100.100.3 0 100 0 65001 i *> 100.100.100.2/32 0.0.0.0 0 32768 ? Route Distinguisher: 65001:1 *>i100.100.100.1/32 172.100.100.3 0 100 0 65001 i R4#sh ip route vrf SITE-A Routing Table: SITE-A Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2 E1 - OSPF external type 1, E2 - OSPF external type 2 i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2 ia - IS-IS inter area, * - candidate default, U - per-user static route o - ODR, P - periodic downloaded static route Gateway of last resort is not set 100.0.0.0/32 is subnetted, 2 subnets B 100.100.100.1 [200/0] via 172.100.100.3, 00:24:41 C 100.100.100.2 is directly connected, Loopback100 R4#ping vrf SITE-A 100.100.100.1 Type escape sequence to abort. Sending 5, 100-byte ICMP Echos to 100.100.100.1, timeout is 2 seconds: !!!!! Success rate is 100 percent (5/5), round-trip min/avg/max = 36/69/100 ms

 root@R2# run show route table Site-A

 Site-A.inet.0: 2 destinations, 2 routes (2 active, 0 holddown, 0 hidden)
 + = Active Route, - = Last Active, * = Both

 100.100.100.1/32 *[Direct/0] 00:26:34
 > via lo0.100
 100.100.100.2/32 *[BGP/170] 00:25:57, localpref 100, from 172.100.100.1
 AS path: 65000 ?
 > to 150.100.100.2 via fxp0.0, Push 100128


 root@R2# run ping routing-instance Site-A 100.100.100.2 rapid
 PING 100.100.100.2 (100.100.100.2): 56 data bytes
 !!!!!
 --- 100.100.100.2 ping statistics ---
 5 packets transmitted, 5 packets received, 0% packet loss
 round-trip min/avg/max/stddev = 29.921/58.085/101.494/24.054 ms
