Description

This article describes the basic setup of a Chassis Cluster (High Availability), also known as JSRP, on a SRX 220 device.

For other topics, go to the SRX Getting Started main page.

Symptoms

Configure SRX220 devices as a Chassis Cluster.

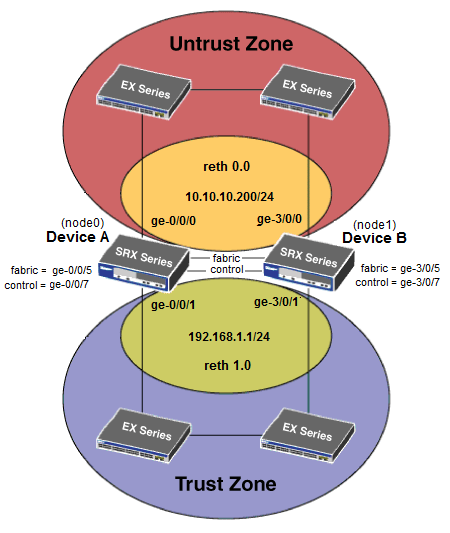

The following topology will be used for the configuration:
alt

Topology notes:

  • Both reths (reth 0.0 and reth 1.0) belong to Redundancy Group 1, the data plane.
  • Redundancy Group 0 is the control plane.
  • ge-0/0/5 was selected for the fabric (data) link in this example. For the fabric link, a GE port is recommended.


For the Deployment Guide for SRX Series Services Gateways in Chassis Cluster Configuration , refer to TN260 .

For other SRX devices, refer:



SRX100 KB15669 [juniper.net]
SRX210 KB15505 [juniper.net]
SRX240 KB15504 [juniper.net]
SRX550 KB25889 [juniper.net]
SRX650 KB15503 [juniper.net]
SRX1400 TN10
SRX3000 series TN10
SRX5000 series TN10

Solution

This section contains the following:




Prerequisites

Before proceeding with configuring the device for a Chassis Cluster, complete these prerequisites:


a.  In the SRX configuration, remove any existing configuration associated with the interfaces that will be transformed into fxp0 (out-of-band management) and fxp1 (control link) when the chassis cluster feature is enabled.

For the SRX220H, these interfaces are ge-0/0/6 and ge-0/0/7.   The ge-0/0/6 interface will be mapped to fxp0 (out-of-band management) and the ge-0/0/7 interface will be mapped to fxp1 (control).  The interfaces that are mapped to fxp0 and fxp1 are device specific. For more information on this, refer to KB15356 - How are interfaces assigned on J-Series and SRX platforms when the chassis cluster is enabled? [juniper.net]

For help on removing the existing configuration on these interfaces, refer to KB27713 - How to remove references to the interfaces that will be used as fxp0 and fxp1 [juniper.net] .

Important note: If you do not perform this prerequisite, then your chassis cluster may not come up; it may go into a Hold/Lost state on both nodes.



b. Confirm that the HARDWARE on both devices is the same.

Verify using this command on both devices:
root@srx220> show chassis hardware detail
Hardware inventory:
Item             Version  Part number  Serial number     Description
Chassis                                AQ0910AA0016      SRX220H
Routing Engine   REV 08   750-031175   AABC5162          RE-SRX220H
  usb0 (addr 1)  DWC OTG root hub 0    vendor 0x0000     uhub0
  usb0 (addr 2)  product 0x005a 90     vendor 0x0409     uhub1
FPC 0                                                    FPC
  PIC 0                                                  8x GE Base PIC
FPC 1            REV 14   750-025184   AABD0705          FPC
  PIC 0                                                  1x VDSL2 Annex A
FPC 2            REV 04   750-023367   AAAZ1730          FPC
  PIC 0                                                  1x T1E1 mPIM
Power Supply 0

For more information, refer to KB16141 - What are the minimum hardware and software requirements for a Chassis Cluster on SRX ?  [juniper.net]



c. Confirm that the SOFTWARE on both standalone devices is the same Junos OS version.

Verify using this command on both devices:
root> show version
Model: srx220h
JUNOS Software Release [11.4R7.5]
d. Confirm that the LICENSE keys are the same on both devices.



There is not a separate license for chassis cluster. However, both firewalls must have the identical features and license keys enabled or installed.  Note that the license keys are not required to configure your chassis cluster, but they are required once your chassis cluster is in production and you need to use those features on either device.

Verify the license keys by using this command on both devices:
root> show system license

e.  If running Junos 10.4 or earlier, Ethernet switching is not supported. For more information, refer to Disabling Switching on SRX100, SRX210, SRX220, and SRX240 Devices Before Enabling Chassis Clustering .







Configuration

The following are the basic steps required for configuring a Chassis Cluster on SRX220 devices.

Step 1.   Physically connect the two devices together to form the control and fabric (data) links.


Control link:
On the SRX220 device, connect ge-0/0/7  on device A to ge-0/0/7 on device B.  The ge-0/0/7 interface on device B will change to ge-3/0/7 after clustering is enabled in Step 2.
Note: It is strongly recommended that the interfaces used for the control link are connected directly with a cable (instead of a switch). If a switch must be used, then refer to KB25017 [juniper.net] .


Fabric (Data) link:
On the SRX220 device, connect ge-0/0/5  on device A to ge-0/0/5  on device B. The ge-0/0/5 interface on device B will change to ge-3/0/5 after clustering is enabled in Step 2.
Note:   For the Fabric (Data) link, it is recommended to use a GE port.  If ge-0/0/5 is not available, you can choose another open port on your devices.  The Fabric (Data) link can be any available open port either onboard or gPIM other than ge-0/0/6 and ge-0/0/7.


It is helpful to know that after step 2, the following will interface assignments will occur:
  • ge-0/0/6 will become fxp0 and used as for individual management of each of the devices
  • ge-0/0/7 will become fxp1 and used as the control link between the two devices   (This is also documented in KB15356 [juniper.net] .)
  • The other interfaces are also renamed on the secondary device. For example, on a SRX 220 device, the ge-0/0/0 interface is renamed to ge-3/0/0 on the secondary node 1. Refer to the complete mapping for each SRX Series device: Node Interfaces on Active SRX Series Chassis Clusters .






Step 2.   Enable cluster mode and reboot the devices.  Note that this is done in operational mode and not with a configure mode command.

     > set chassis cluster cluster-id <0-15> node <0-1> reboot
For example:
On device A:    >set chassis cluster cluster-id 1 node 0 reboot
On device B:    >set chassis cluster cluster-id 1 node 1 reboot
  • Cluster id will be the same on both devices, but the node id should be different as one device is node0 the other device is node1.
  • This command will need to be done on both devices.
  • The range for the cluster-id is 0-15. Setting it to 0 is the equivalent of disabling cluster mode. User has only 1-15 (15 cluster IDs) ids for working cluster, so user can calculate virtual MAC only for these 15 cluster ids. For more information, refer to [KB13689] How is the virtual MAC address derived for reth interfaces on J-Series and SRX? [juniper.net]
After the reboot, note how the ge-0/0/6 and ge-0/0/7 interfaces are re-purposed to fxp0 and fxp1 respectively.



NOTE:  Steps 3 - 8 can all be performed on the primary device (Device A), and they will be automatically copied over to the secondary device (Device B) when a commit is done.


Step 3.   Configure the device specific configurations, such as host names and management IP addresses.  This is specific to each device and is the only part of the configuration that is unique to its specific node. This is done by entering the following commands (all on the primary node):
  • On device A:
    {primary:node0}
    # set groups node0 system host-name <name-node0>      -Device A's host name
    # set groups node0 interfaces fxp0 unit 0 family inet address <ip address/mask>   -Device A's management IP address on fxp0 interface
    # set groups node1 system host-name <name-node1>       -Device B's host name
    # set groups node1 interfaces fxp0 unit 0 family inet address <ip address/mask   -Device B's management IP address on fxp0 interface</code>
    alt
    The 'set apply-groups' command is run so that the individual configs for each node, set by the above commands, are applied only to that node. This command is required.

Step 4.   Configure the FAB links (data plane links for RTO sync, etc). For this example we will use physical ports ge-0/0/5 from each node.

On device A:
{primary:node0}
-fab0 is node0 (Device A) interface for the data link
# set interfaces fab0 fabric-options member-interfaces ge-0/0/5

-fab1 is node1 (Device B) interface for the data link
# set interfaces fab1 fabric-options member-interfaces ge-3/0/5

Note: There are no configuration commands for the Control link connection. Only the SRX5600 and SRX5800 platforms require configuration commands for the Control link (SPC port).



    Step 5.   Configure the Redundancy Group 0 for the Routing Engine failover properties. Also configure Redundancy Group 1 (all the interfaces will be in one Redundancy Group in this example) to define the failover properties for the Reth interfaces.

    Note: If you want to use multiple Redundancy Groups for the interfaces, refer to the Security Configuration Guide .

    • {primary:node0}
      # set chassis cluster redundancy-group 0 node 0 priority 100
      # set chassis cluster redundancy-group 0 node 1 priority 1
      # set chassis cluster redundancy-group 1 node 0 priority 100
      # set chassis cluster redundancy-group 1 node 1 priority 1





    Step 6.   Configure the interface monitoring.   Monitoring the health of the interfaces is one way to trigger Redundancy group failover.
    Note: Interface monitoring is not recommended for redundancy-group 0.

    • On device A:
      {primary:node0}
      # set chassis cluster redundancy-group 1 interface-monitor ge-0/0/0 weight 255
      # set chassis cluster redundancy-group 1 interface-monitor ge-0/0/1 weight 255
      # set chassis cluster redundancy-group 1 interface-monitor ge-3/0/0 weight 255
      # set chassis cluster redundancy-group 1 interface-monitor ge-3/0/1 weight 255



    Step 7.   Configure the Redundant Ethernet interfaces (Reth interfaces) and assign the Redundant interfaces to a zone. Make sure that you setup your max number of redundant interfaces as follows:

    • On device A:
      {primary:node0}
      # set chassis cluster reth-count <max-number>

      -for first interface in the group (on Device A)
      # set interfaces <node0-interface-name> gigether-options redundant-parent reth0

      -for second interface in the group (on Device B)
      # set interfaces <node1-interface-name> gigether-options redundant-parent reth0

      -set up redundancy group for interfaces
      # set interfaces reth0 redundant-ether-options redundancy-group <group-number>

      # set interfaces reth0.0 family inet address <ip address/mask>
      # set security zones security-zone <zone> interfaces reth0.0


    For example:

    • On device A:
      {primary:node0}
      # set chassis cluster reth-count 2

      -for first interface in the group (on Device A)
      # set interfaces ge-0/0/1 gigether-options redundant-parent reth1

      -for second interface in the group (on Device B)
      # set interfaces ge-3/0/1 gigether-options redundant-parent reth1

      -set up redundancy group for interfaces
      # set interfaces reth1 redundant-ether-options redundancy-group 1
      # set interfaces reth1 unit 0 family inet address 192.168.1.1/24

      -for first interface in the group (on Device A)
      # set interfaces ge-0/0/0 gigether-options redundant-parent reth0

      -for second interface in the group (on Device B)
      # set interfaces ge-3/0/0 gigether-options redundant-parent reth0

      -set up redundancy group for interfaces
      # set interfaces reth0 redundant-ether-options redundancy-group 1

      # set interfaces reth0 unit 0 family inet address 10.10.10.200/24
      # set security zones security-zone untrust interfaces reth0.0
      # set security zones security-zone trust interfaces reth1.0






    Step 8.   Commit and changes will be copied over to the Secondary Node, Device B.

    • On device A:
      {primary:node0}
      # commit
      This will prepare the basic clustering setting for both the devices.

    TIP: If you want to manage this cluster via NSM or any other Management devices, refer to KB20795 [juniper.net] .





    Technical Documentation

    Chassis Cluster for Security Devices




    Verification

    You can check the cluster status with the following commands.
    show chassis cluster status
    show chassis cluster interfaces
    show chassis cluster statistics
    show chassis cluster control-plane statistics
    show chassis cluster data-plane statistics
    show chassis cluster status redundancy-group 1
    Refer to the Junos Security Configuration Guide for what these commands mean:
    • HTML - Verifying the Chassis Cluster Configuration



    Troubleshooting






    Modification History

    2020-03-25: Article reviewed for accuracy; it is valid and accurate
