Description

This article describes the issue of the Proxy ARP being unable to respond to ARP requests, when it is configured on the interface VLAN in SRX-branch devices.

Symptoms

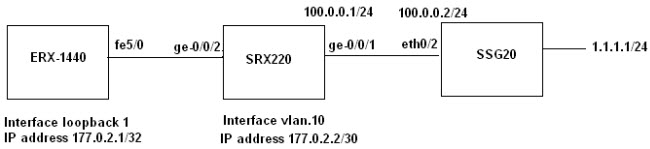

Topology :

alt

  • SRX220 is configured in the packet mode:

    • The ge-0/0/2 interface is configured as a switching port and connects to the fe5/0 interface of ERX-1440.

  • The vlan.10 interface is configured as RVI with the IP address 177.0.2.2/30 .

  • The fastEthernet5/0 interface on ERX-1440 is configured with an unnumbered IP on the loopback 1 interface, and the IP address of the loopback 1 interface is 177.0.2.1/32.

Problem:

When Proxy ARP is configured on the vlan.10 SRX interface, and when an ICMP echo request is sent from ERX-1440 177.0.2.1  to  100.0.0.2 or 1.1.1.1 , the ERX-1440 device gets the ICMP request timed out. You can see the results below.


On the ERX-1440 device, it is unable to reach 100.0.0.2 and 1.1.1.1, and the ARP is not cached for 100.0.0.2 and 1.1.1.1.
1440-Juniper-lab_A:test-1#ping 100.0.0.2
Sending 5 ICMP echoes to 100.0.0.2, timeout = 2 sec.
...
Success rate = 0% (0/5), round-trip min/avg/max = 0/0/0 ms
1440-Juniper-lab_A:test-1#ping 1.1.1.1
Sending 5 ICMP echoes to 1.1.1.1, timeout = 2 sec.
...
Success rate = 0% (0/5), round-trip min/avg/max = 0/0/0 ms
1440-Juniper-lab_A:test-1#
1440-Juniper-lab_A:test-1#sh arp
        Address         Age         Hardware Addr Interface
1440-Juniper-lab_A:test-1#

On the SRX220 device, it does not respond to the ARP request that is received from 177.0.2.1 (ERX).
lab# run monitor traffic interface vlan.10 no-resolve
verbose output suppressed, use <detail> or <extensive> for full protocol decode
Address resolution is OFF.
Listening on vlan.10, capture size 96 bytes

17:27:43.698911  In arp who-has 100.0.0.2 tell 177.0.2.1
17:27:48.165849  In arp who-has 100.0.0.2 tell 177.0.2.1
17:27:53.165904  In arp who-has 100.0.0.2 tell 177.0.2.1
17:27:58.166361  In arp who-has 100.0.0.2 tell 177.0.2.1
17:28:03.166080  In arp who-has 100.0.0.2 tell 177.0.2.1
17:28:08.167060  In arp who-has 100.0.0.2 tell 177.0.2.1
17:29:22.243175  In arp who-has 1.1.1.1 tell 177.0.2.1
17:29:23.167283  In arp who-has 1.1.1.1 tell 177.0.2.1
17:29:28.167765  In arp who-has 1.1.1.1 tell 177.0.2.1
17:29:33.173714  In arp who-has 1.1.1.1 tell 177.0.2.1
17:29:38.174017  In arp who-has 1.1.1.1 tell 177.0.2.1
17:29:43.167827  In arp who-has 1.1.1.1 tell 177.0.2.1
17:29:48.175420  In arp who-has 1.1.1.1 tell 177.0.2.1

Configuration on the SRX220 device :
interfaces {
    ge-0/0/1 {
        unit 0 {
            family inet {
                address 100.0.0.1/24;
            }
        }
    }
    ge-0/0/2 {
        unit 0 {
            family ethernet-switching;
        }
    }
    vlan {
        unit 10 {
            proxy-arp;
            family inet {
                address 177.0.2.2/30;
            }
        }
    }
}
vlans {
    test-vlan10 {
        vlan-id 10;
        interface {
            ge-0/0/2.0;
            ge-0/0/0.0;
        }
        l3-interface vlan.10;
    }
}
If the vlan.10 interface and VLANs are de-activated and the Proxy ARP is configured on the ge0/0/2 SRX interface, the SRX responds to the ARP request that is received from 1440 177.0.2.1 (ERX).

Configuration on the SRX220 device :
interfaces {
    ge-0/0/1 {
        unit 0 {
            family inet {
                address 100.0.0.1/24;
            }
        }
    }
    ge-0/0/2 {
        unit 0 {
            proxy-arp;
            family inet {
                address 177.0.2.2/30;
            }
        }
    }
    inactive: vlan {
        unit 10 {
            proxy-arp;
            family inet {
                address 177.0.2.2/30;
            }
        }
    }
}
inactive: vlans {
    test-vlan10 {
        vlan-id 10;
        interface {
            ge-0/0/2.0;
            ge-0/0/0.0;
        }
        l3-interface vlan.10;
    }
}

The result is as follows :

On the ERX-1440 device, it can reach 100.0.0.2 and 1.1.1.1 and the ARP is cached for the 1.1.1.1 and 100.0.0.2 addresses.
1440-Juniper-lab_A:test-1#ping 100.0.0.2
Sending 5 ICMP echoes to 100.0.0.2, timeout = 2 sec.
!!!!!
Success rate = 100% (5/5), round-trip min/avg/max = 1/4/18 ms
1440-Juniper-lab_A:test-1#ping 1.1.1.1
Sending 5 ICMP echoes to 1.1.1.1, timeout = 2 sec.
!!!!!
Success rate = 100% (5/5), round-trip min/avg/max = 2/5/19 ms
1440-Juniper-lab_A:test-1#sh arp
        Address         Age         Hardware Addr Interface
        1.1.1.1       21580        50c5.8d74.4302 FastEthernet5/0
      100.0.0.2       21570        50c5.8d74.4302 FastEthernet5/0
1440-Juniper-lab_A:test-1#

On the SRX220 device, it responds to the ARP request that is received from 1440 177.0.2.1 (ERX).
lab# run monitor traffic interface ge-0/0/2 no-resolve
verbose output suppressed, use <detail> or <extensive> for full protocol decode
Address resolution is OFF.
Listening on ge-0/0/2, capture size 96 bytes

17:54:12.012458  In arp who-has 100.0.0.2 tell 177.0.2.1
17:54:12.012548 Out arp reply 100.0.0.2 is-at 50:c5:8d:74:43:02
17:54:23.055692  In arp who-has 1.1.1.1 tell 177.0.2.1
17:54:23.055797 Out arp reply 1.1.1.1 is-at 50:c5:8d:74:43:02

Solution


Actually, when using the proxy ARP on the VLAN.X interface, ARP requests should be answered.
Currently, this issue can be fixed in 10.3R4, 10.4R3, 11.1R1, and 11.2R1.
For more information, refer to PR576428 .
