This article explains how to autoupdate JSA/STRM when there is no connection available to the Juniper autoupdate server.

Often due to security reasons, JSA/STRM is not allowed to access the Internet (hence there is no access to Juniper autoupdate site). In this case, setting up a local repository is possible.

Note:  The autoupdate file size is approximately > 5.5GB . Make sure you transfer the file to a partition/directory that has enough disk space available (for ex. /transient/autoupdate ).

• ​Download the autoupdate package from Juniper Customer Support *(JSA Signatures)
• Log in to JSA as the root user. Create a directory in /transient (ex. mkdir /transient/autoupdate )
• Type the following command to create the autoupdate directory and a soft-link to it:

• Save the autoupdate package file on your JSA server in the /transient/autoupdate directory, and then un-tar the file in the directory that you created.
• On your JSA console, type the following command to decompress the auto-update package:

chown -R root:siem /transient/autoupdate/​
chmod -R 777 /transient/autoupdate/

• Log in to the JSA UI.
• From the navigation menu ( ), click  Admin  to open the Admin tab.
• In the System Configuration section, click  Auto Update.
• Click  Change Settings , and click the Advanced  tab.
• In the Web Server field, type https://localhost/ or https://127.0.0.1/ and make sure you include forward slashes as shown.

           *(If the above doesn't work try with Console IP Address : https:// <Console-IP-Addr> / )

• In the Directory field, type  software/strm/autoupdate/ and make sure you include forward slashes as shown.
• Click  Save . You will receive a blue notification, which is normal.
• Click  Check for Updates  from the left menu.
• Click the Get New Updates  button.

The JSA auto-update directory is created, the auto-update package downloaded, and the configuration for auto-updates is complete.


Screenshot and Lab Results:

• Copy the autoupdate-XX.tgz file to the /transient/autoupdate directory as the file size is almost 4.5GB.

• By default, /opt/qradar/www/software/strm/autoupdate/ will not be present. You will need to create the directory as shown in the screenshot below:

Note: Create a soft link with the help of the above command as, by default, the /opt directory has less disk space. Copying the autoupdate files in the /opt directory can cause disk space outage issue and may impact the services in JSA.

• Then un-tar the file in the /transient/autoupdate/ directory:

cd /transient/autoupdate/
tar -zxvf autoupdate-10102019.tgz

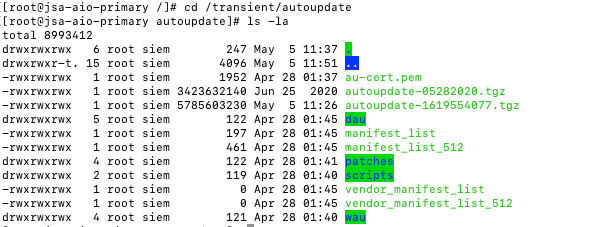

• Validate if all the files are present under /transient/autoupdate/ :

cd /transient/autoupdate/​
ls -la

• Change file ownership and permission:​

chown -R root:siem /transient/autoupdate/​
chmod -R 777 /transient/autoupdate/

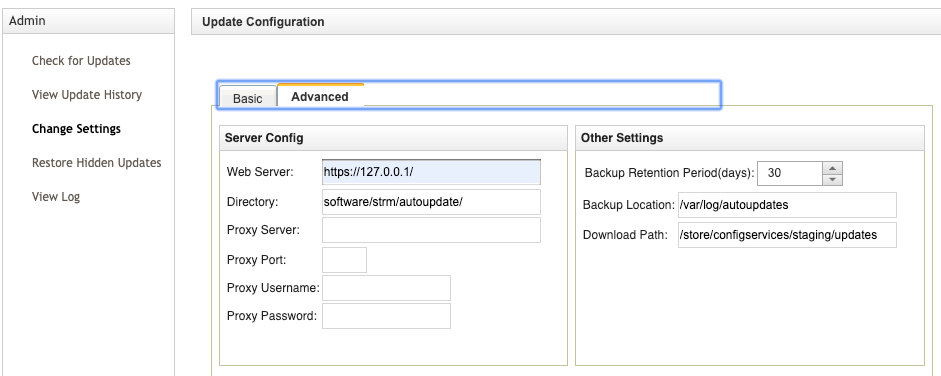

• From the JSA GUI: Go to Admin > Auto Update > Change Settings > Advanced > Make the changes and Save.

Web Server : https://localhost/ or https://127.0.0.1/ or https:// <Console-IP-Addr> /
Directory : software/strm/autoupdate/

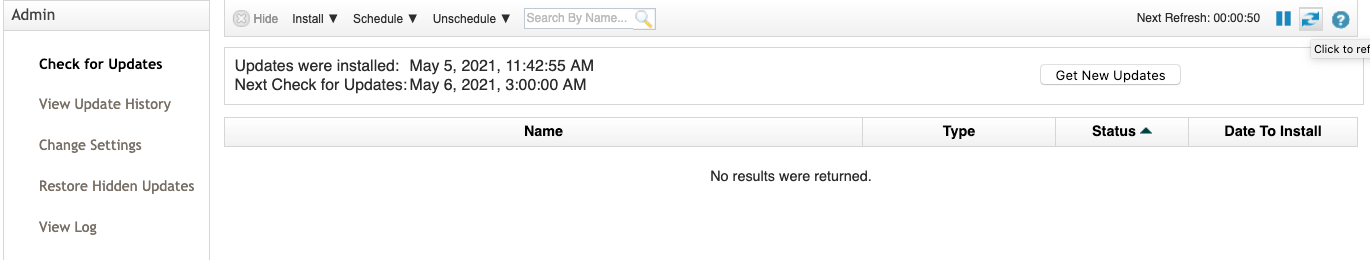

• Now go to Auto Update > Check for Updates > Click on Get New Updates. You will see the latest date and timestamp for the “Updates were Installed.”

Note:  If there are multiple JSA installations in your network (such as distributed and/or HA installation), you do not have to create a local repository on all the devices. Dedicate one JSA as an auto-update server and on the additional JSAs, point the URL in the WebUI to the dedicated JSA auto-update server.

2021-05-05: Updated ownership and permission of  autoupdate  directory, included Console IP Addr as alternative, updated latest screenshots and lab results.
2021-02-22: Corrected syntax in step 4 from /transient to /transient/autoupdate
2019-12-06: Corrected the commands for updating ownership and permission of autoupdate directory
2019-10-30: Updated for JSA
