This article provides a generic routing encapsulation (GRE) tunnel configuration example between two Juniper SRX firewalls. However, the configuration applies for any other devices running Juniper Networks Junos OS.
GRE Overview
Generic routing encapsulation (GRE) is a protocol for encapsulation of an arbitrary network layer protocol over another arbitrary network layer protocol.
In the most general case, a system has a packet that needs to be encapsulated and delivered to some destination, which is called the payload. The payload is first encapsulated in a GRE packet. The resulting GRE packet can then be encapsulated in some other protocol and then forwarded. This outer protocol is called the delivery protocol.
GRE tunnels are designed to be completely stateless. This means that each tunnel end-point does not keep any information about the state or availability of the remote tunnel end-point. Normally, a GRE tunnel interface comes up as soon as it is configured and it stays up as long as there is a valid tunnel source address or interface, which is up and reachable. If there is no route to the tunnel end point, the gr-0/0/0 interface might go down.
Some of the common uses for a GRE tunnel are:
Tunneling non-IP address traffic over an IP address network.
IP address multicast tunneling
IPv6 tunneling over IPv4 GRE tunnel
The following are other useful configuration examples:
[SRX] GRE over IPsec configuration example
[SRX] OSPF over GRE over IPSec Configuration Example
[MX] How configure GRE over IPSec with the MS-MIC/MS-MPC or MS-DPC
[M/T]How to: Configure GRE over IPSec (ES PIC)
[EX/QFX] How to configure GRE tunnels with OSPF to deploy BGP
This section contains the following:
Basic GRE Configuration Example
Verification
Basic Steps Needed to Configure GRE
Configure a GRE (gr) interface. The gr interface contains a local address and a destination address. It comes up as soon as it is configured. You can even configure an IP address on the gr interface. (It is not mandatory.)
Configure a route to reach the destination subnet (end-to-end connectivity). You can configure either a static route through the gr interface or use an interior gateway protocol (IGP) [that is, Open Shortest Path First (OSPF) can be used for this purpose]. If there is no end-to-end connectivity, the gr-0/0/0 interface will be down.
The following example illustrates a configuration with the following settings:

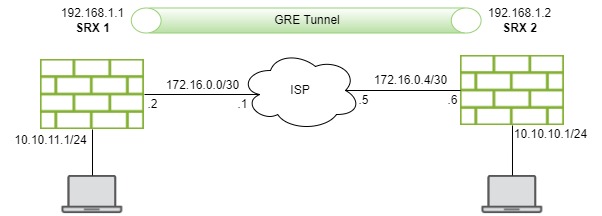

Topology
The local subnet interface is ge-0/0/0 with the IPv4 address as 10.10.11.1/24.
The destination subnet is 10.10.10.0/24 with the tunnel end point IPv4 interface as 10.10.10.1/24.
Bind the gr- 0/0/0 interface to a security zone (this step is required only on SRX platforms).
Configuration Using a Static Route
[edit interfaces] root@SRX-1# show ge-0/0/0 { unit 0 { family inet { address 10.10.11.1/24; } } } gr-0/0/0 { unit 0 { tunnel { source 192.168.1.2; destination 192.168.1.1; } family inet { address 172.16.0.9/30; } } } ge-0/0/1 { unit 0 { family inet { address 172.16.0.2/30; } } } [edit security] (Security zone configuration is required only on SRX platforms.) root@SRX-1# show zones { security-zone trust { host-inbound-traffic { system-services { all; } protocols { all; } } interfaces { gr-0/0/0.0; <<< Add the interface to the appropriate security zone. } } } root@SRX-1# show routing-options static { route 10.10.10.0/24 next-hop gr-0/0/0.0; }
If you do not want to define a static route, OSPF or any routing protocol can be configured between the interfaces.
[edit protocols] root@SRX-1# show ospf { area 0.0.0.0 { interface ge-0/0/0.0; interface gr-0/0/0.0 { passive; } } }
Verify your work.
Verify that the GR interface is up:
root@SRX-1>show interfaces gr-0/0/0 terse Interface Admin Link Proto Local Remote gr-0/0/0 up up gr-0/0/0.0 up up inet 172.16.0.9/30
Verify that the route for the destination network is reachable through the GRE tunnel:
[edit] root@SRX-1> show route 10.10.10.0/24 inet.0: 11 destinations, 11 routes (11 active, 0 holddown, 0 hidden) + = Active Route, - = Last Active, * = Both 10.10.10.0/24 *[Static/5] 00:22:32 > via gr-0/0/0.
Ping a destination address through the tunnel:
[edit]
root@SRX-1> clear interfaces statistics all
root@SRX-1> ping 10.10.10.2 source 10.10.11.1 rapid count 100 PING 10.10.10.2 (10.10.10.2): 56 data bytes !!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!! --- 10.10.10.2 ping statistics --- 100 packets transmitted, 100 packets received, 0% packet loss round-trip min/avg/max/stddev = 0.831/1.033/10.033/1.286 ms [edit]
root@SRX-1> show interfaces gr-0/0/0 extensive Physical interface: gr-0/0/0, Enabled, Physical link is Up Interface index: 134, SNMP ifIndex: 40, Generation: 17 Type: GRE, Link-level type: GRE, MTU: Unlimited, Speed: 800mbps Hold-times : Up 0 ms, Down 0 ms Device flags : Present Running Interface flags: Point-To-Point SNMP-Traps Statistics last cleared: 2005-08-05 21:39:41 UTC (00:00:47 ago) Traffic statistics: Input bytes : 8400 0 bps Output bytes : 8400 0 bps Input packets: 100 0 pps Output packets: 100 0 pps Logical interface gr-0/0/0.0 (Index 72) (SNMP ifIndex 28) (Generation 17) Flags: Point-To-Point SNMP-Traps 16384 IP-Header 10.1.1.2:10.1.1.1:47:df:64:0000000000000000 Encapsulation: GRE-NULL Traffic statistics: Input bytes : 8400 Output bytes : 8400 Input packets: 100 Output packets: 100 Local statistics: Input bytes : 0 Output bytes : 0 Input packets: 0 Output packets: 0 Transit statistics: Input bytes : 8400 0 bps Output bytes : 8400 0 bps Input packets: 100 0 pps Output packets: 100 0 pps Protocol inet, MTU: 1476, Generation: 25, Route table: 0 Flags: None Addresses, Flags: Is-Primary Destination: Unspecified, Local: 100.1.1.1, Broadcast: Unspecified, Generation: 30
2020-06-29: Adapted article to Junos OS instead of SRX only; also removed J-Series
2020-03-26: Article reviewed for accuracy; it is valid and accurate
2022-09-27: Article reviewed for accuracy, added troubleshooting tips and modified IPs to comply with RFCs.
