Description

Troubleshooting steps to verify and correct reachability to the SRX.


Symptoms

Symptoms:

  • Unable to ping an SRX interface
  • Can't connect to SRX with Pulse client
  • Unable to connect to SRX via HTTPS or HTTP:

    • https:// <ike external interface IP> /dynamic-vpn
    https:// <srx interface ip>
    http:// <srx interface ip>

Instead of the SRX web page being displayed, the user receives one of the following browser error messages (depending on the Web browser being used):

  • Unable to connect - Firefox can't establish a connection to the server at IP address
OR
  • This webpage is not available
OR
  • Internet Explorer cannot display this webpage

Solution


Perform the follow steps to solve the problem:

step1    On the SRX, are 'ping, http or https' enabled on the interface you are trying to reach for the method being attempted?
       In order to verify, enter the following command, replacing fe-0/0/0.0 with the proper interface name.

      root@srx> show interfaces fe-0/0/0.0

        Logical interface fe-0/0/0.0 (Index 68) (SNMP ifIndex 151)
          Flags: SNMP-Traps Encapsulation: ENET2
          Input packets : 0
          Output packets: 0
          Security: Zone: untrust
          Allowed host-inbound traffic : http https ike ping
          Protocol inet, MTU: 1500
          Flags: Sendbcast-pkt-to-re, Is-Primary
          Addresses, Flags: Is-Default Is-Preferred Is-Primary
            Destination: 172.27.201/24, Local: 172.27.201.26,
            Broadcast: 172.27.201.255

        This can also be checked through the configuration:

      root@srx> show security zones security-zone untrust interfaces
      fe-0/0/0.0 {
          host-inbound-traffic {
              system-services {
                 http ;
                 https ;
                 ike;
                 ping
              }
          }
      }

  • Yes - Continue to Step 2.

  • No - Add necessary services attempting to be used.

    root@srx# set security zones security-zone < zone name > interfaces < interface name > host-inbound-traffic system-services <service>
    root@srx# commit
        Note:   "host-inbound-traffic system-services" can also be configured directly under the zone; however, the "host-inbound-traffic system-services" under the interface as shown above will overwrite the configuration that is done directly under the zone.



step2   Are you attempting to reach the SRX using HTTP or HTTPS?

  • Yes - Verify system services have been enabled to allow HTTP/HTTPS.
                root@srx# show system services
               web-management {
                     http;
                     https {
                           system-generated-certificate;
                     }
               }
  • No - Continue to Step 3.



step3   Is there a firewall filter applied to loopback interface or interface attempting to be reached?

root# show interfaces lo0
unit 0 {
    family inet {
        filter {
            input fw_filter;
        }
    }
}

root# show interfaces fe-0/0/0
unit 0 {
    family inet {          filter {
             input fw_filter;         }
        dhcp;
    }
}
  • Yes - Verify that the firewall filter has allowed services attempting to be used.
root# show firewall
filter fw_filter {
    term 1 {
        from {
            destination-port [ ssh https http ];
        }
        then accept;
    }
    term 2 {
        from {
            protocol icmp;
        }
        then accept;
    }
}
  • No - Continue to Step 4.



step4   With PING being allowed in Step 1, try to ping the IP address of the SRX.  Is the ping successful?

.  Note: Remember to delete ping from the interface when finished, if you do not want to continue allowing ping to that interface.
  • No - Continue to Step 5.



step5   Do you have a route back to the source using the same interface that you are attempting to reach?

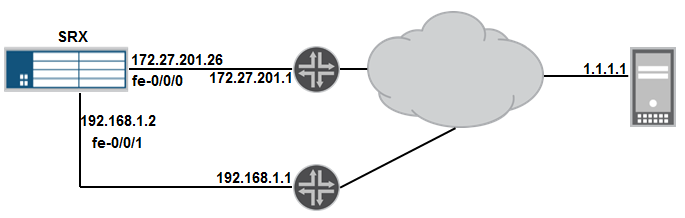

alt

root@srx> show route 1.1.1.1

inet.0: 5 destinations, 5 routes (5 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

0.0.0.0/0          *[Static/5] 3w4d 01:58:54
                    > to 192.168.1.1 via fe-0/0/1.0    <-Active Route (denoted by an *)
                    [Access-internal/12] 00:02:25
                    > to 172.27.201.1 via fe-0/0/0.0
  • Yes - Continue to Step 6 .
  • No - Add a route to the source with a next-hop for the downstream device connected to the interface you are attempting to reach.

    root# set routing-options static route 1.1.1.1/32 next-hop 172.27.201.1
    root# commit


step6   Traceroute to the IP address of the SRX.  Does traceroute give you a clue as to why you cannot ping the SRX?   (Most likely, there is a routing issue or firewall filter in the path from the PC to the SRX.)
