This is the top level article of a series of troubleshooting articles that help you get your Pulse client connected to an SRX (using the Dynamic VPN feature) and accessing the protected resources.  Start here to resolve your issue.

Symptoms:

• Pulse client cannot login or is not connected
• Pulse client cannot get to protected resources
• Pulse client is not connecting

Perform the follow steps to solve the problem:

  Which best describes your issue with the Pulse client?

• Can't login or can't connect to the SRX (or not sure)  - Continue with Step 2
• Can connect, but can't get to protected resources (i.e can't ping or can't FTP or can't copy files from server) - Jump to Step 5


  Look for the "Pulse" icon in the "system tray" in the lower right corner of the PC.   When you hover over the icon, it describes the client details. The Pulse icon highlighted below means that Pulse, the Dynamic VPN client, has been downloaded and installed to your PC.

For Pulse, the icon looks like this:

Do you see the "Pulse" icon in the "system tray"?

• Yes - Double-click on the "Pulse" icon, and jump to with Step 4
• No - Continue with Step 3


  On the PC client, browse to Start > Programs >  Juniper Networks > Junos Pulse > Junos Pulse:

Can you browse to Junos Pulse?

• Yes - Click on Junos Pulse , and continue with Step 4 .  (Note:  If you can browse to Junos Pulse, then the Dynamic VPN Client has been downloaded to your PC.)
• No - Continue with the steps in KB17231 - Can't login to https://router-ip/dynamic-vpn or can't download Pulse Client [juniper.net]

    Is the Connection to the SRX listed?

• Yes - Continue to Step 5

• No - Add a connection to the SRX.  For instructions, refer to the Pulse Help and look for "How Do I..Add a connection'.  The instructions are also available here:  Managing Junos Pulse Connections

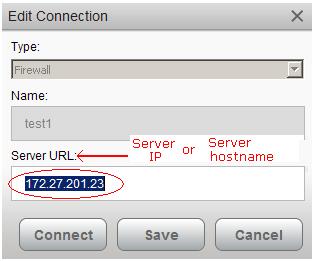

  Important: A common mistake when 'Adding a Connection' is that the Server URL is incorrectly entered. You must enter either the SRX " hostname " or SRX " IP address " in the 'Server URL' field for the connection to the SRX.
  Do not specify a regular URL of the format http://something.someone.com or http://1.1.1.1/dynamic-vpn ; it must be something.someone.com or 1.1.1.1



    View the 'Status' of the connection to the SRX.

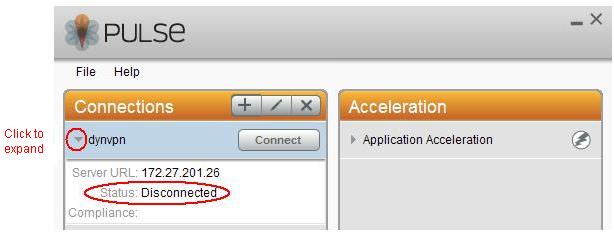

Double-click on the Connection name or click on the arrow to the left of the Connection Name in order to expand and view the Connection Status:

What is the 'Status' of the connection to the SRX?

• Disconnected - Continue with steps in the KB23031 - Pulse client connection status is 'Disconnected' [juniper.net]


• Connected - Continue with the steps in KB17660 - Pulse client is connected, but can't get to protected resources [juniper.net]

• Waiting to connect - Continue with the steps in KB17292 - [SRX] Check license usage and install license [juniper.net]

• Dynamic VPN Feature Guide for SRX Series Devices (Overview, Configuration, Administration)
