How to connect a Junos device to NSM

For NSM to manage a Junos device, the device must first be configured properly.

Notes:

• SSHv2 is mandatory for NSM

• For NSM access, both SSH and netconf over SSH must be enabled (step 5 below).

• It is recommended to use a dedicated NSM user.

• root#  set system login user nsm class super-user authentication plain-text-password

  This allows you to identify who made certain changes/operations.

Perform the following steps to import a device into NSM, so that it can be managed by NSM:

1. Log in to the Junos device:

   Amnesiac (ttyu0)

login: root
Password:

--- JUNOS 9.6R1.13 built 2009-08-01 09:23:09 UTC
root@%


2. Enter the configuration CLI mode, if needed:

   root@% cli
root>

3. Confirm the device has the necessary configuration for connectivity: root-authentication, interface, routing, security zones. Security devices such as JSRX block all traffic by default, including management traffic.

   Run the following command, and check the settings for the following set commands. For branch SRX devices, make sure the services required for NSM are opened for access (see bold line below).  In this example, the ge-0/0/0 interface is used to accept all inbound management traffic; you may be using a different interface for management.

   root> show configuration | display set
set version 9.6R1.13
set system root-authentication encrypted-password "$ABC123"
set interfaces ge-0/0/0 unit 0 family inet address 10.85.49.149/24
set routing-options static route 0.0.0.0/0 next-hop 10.85.49.1
set security zones security-zone trust interfaces ge-0/0/0.0 host-inbound-traffic system-services all


4. Enter configuration mode:

   root> edit
Entering configuration mode

[edit]
root#


5. Configure netconf ssh on the device. If the device is a cluster, configure the appropriate groups.

   [edit]
root# set system services netconf ssh
root# set system services ssh protocol-version v2

[edit]
root# commit and-quit
commit complete
Exiting configuration mode

root>

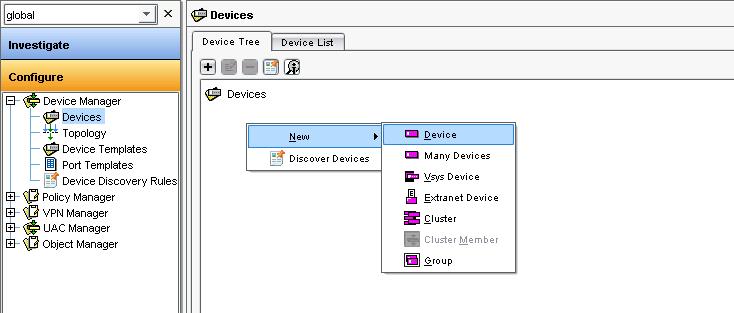

6. In NSM, click to add a new device:

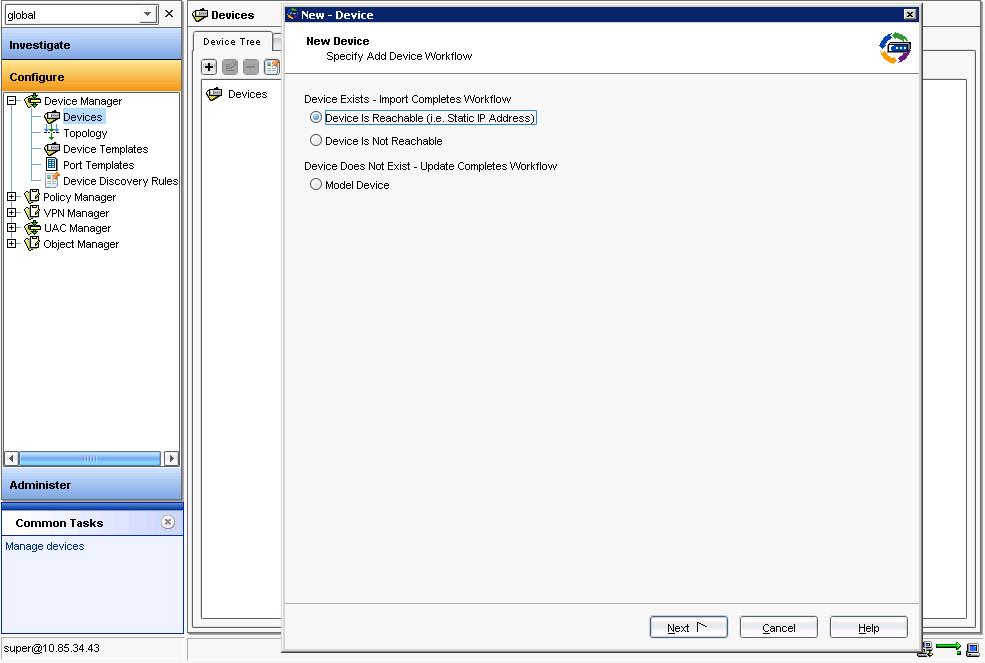

7. Choose the 'Device is Reachable' option:

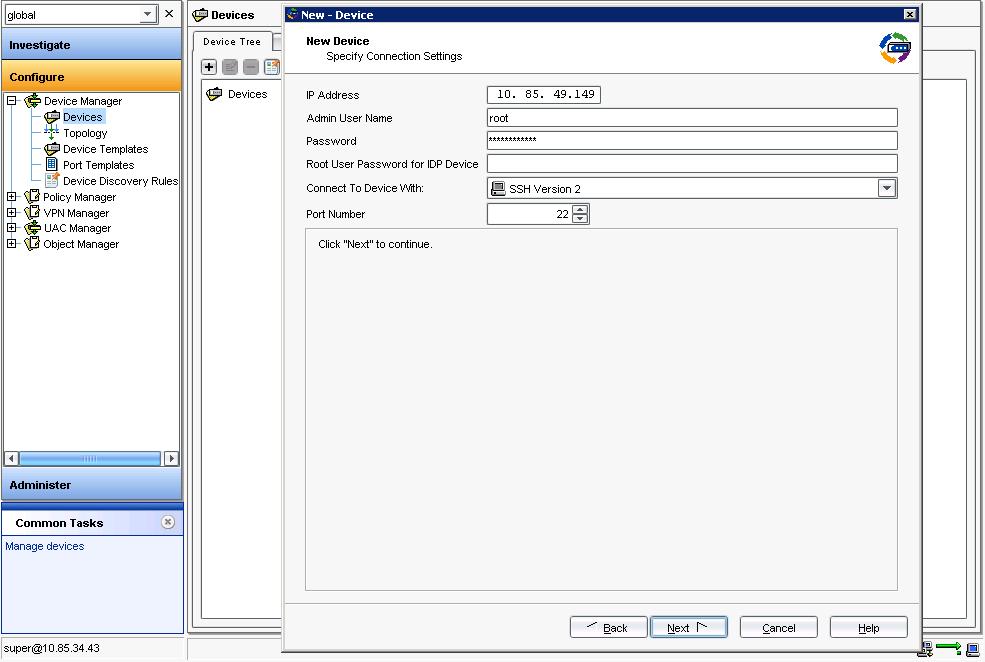

8. Enter the IP Address, Admin Username, and password:

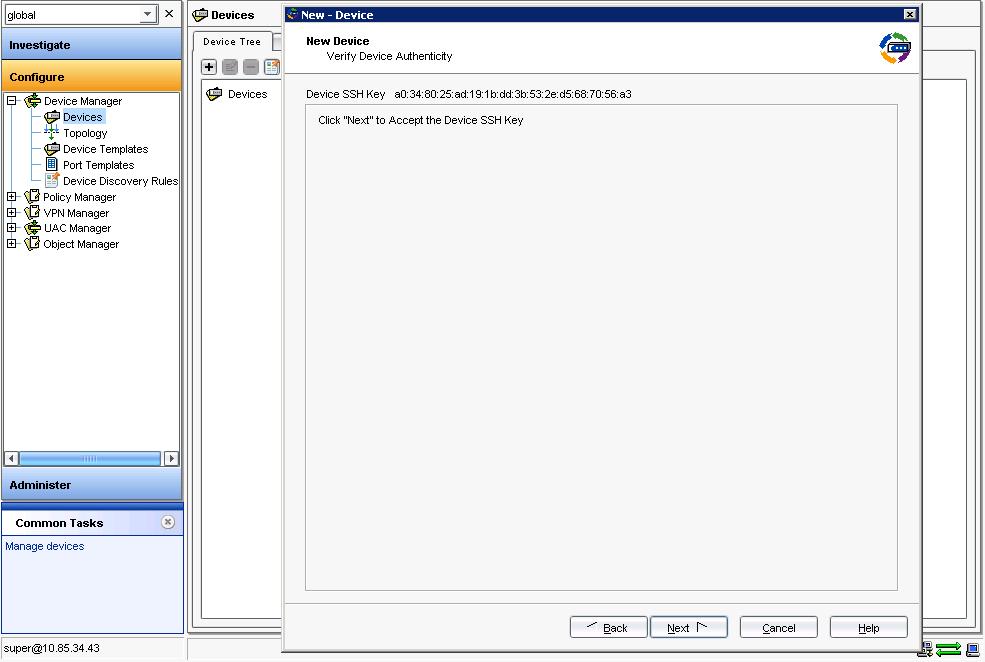

9. Click "Next" to accept the SSH key:

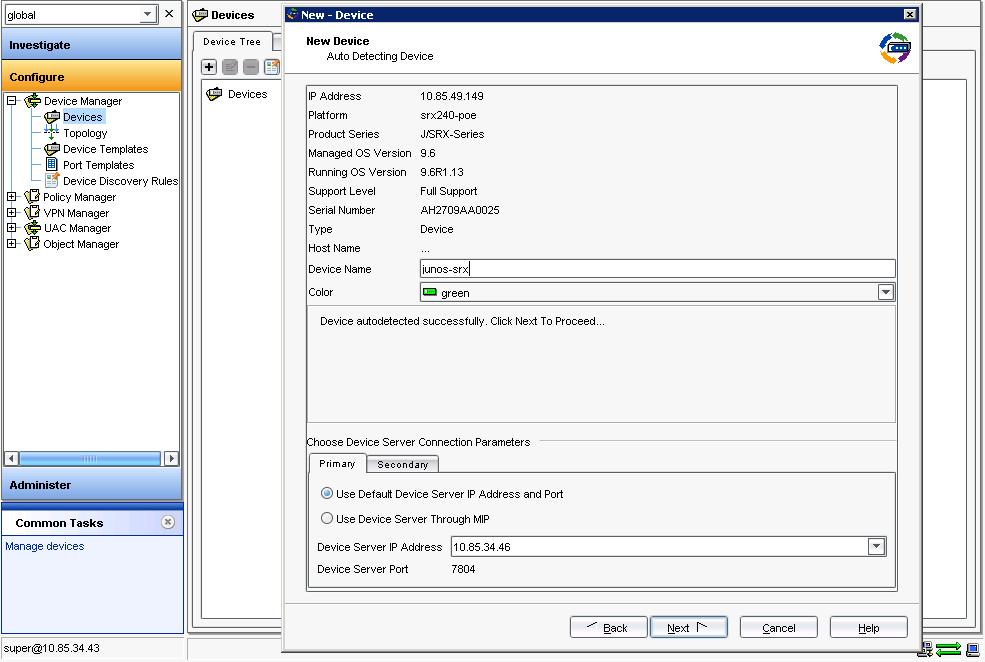

10. Enter device name and click "Next":

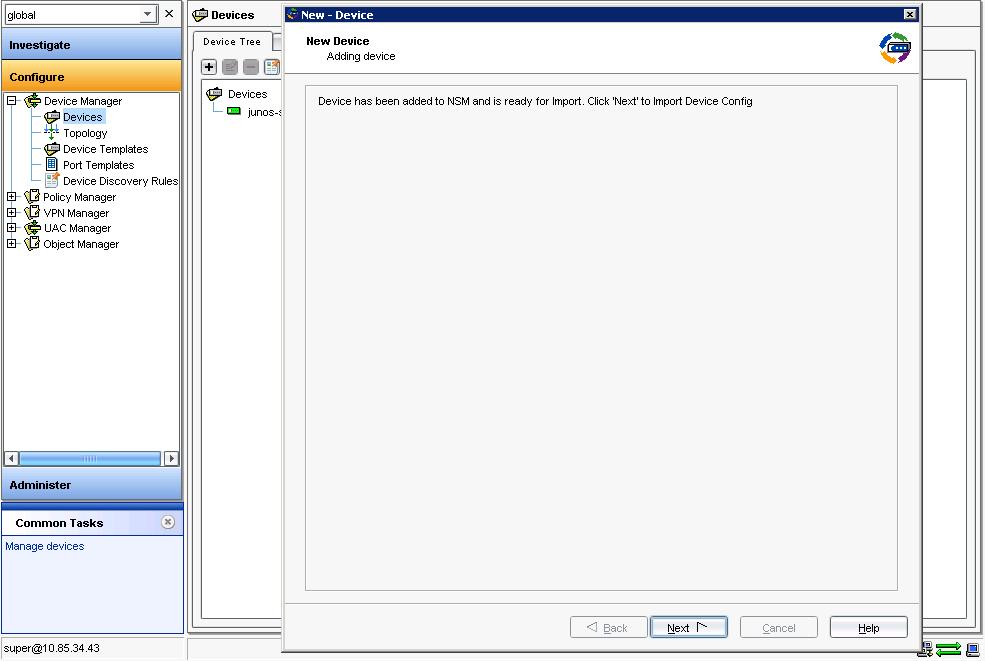

11. The device will receive the NSM config through an SSH connection and then will connect back to NSM over a secure netconf tunnel.  The configuration will look similar to the following:

    root> show configuration | display set
set version 9.6R1.13
set system root-authentication encrypted-password "$ABC123"
set system services netconf ssh
set system services outbound-ssh client nsm-10.85.34.46 device-id 631578
set system services outbound-ssh client nsm-10.85.34.46 secret "$ABC123"
set system services outbound-ssh client nsm-10.85.34.46 services netconf
set system services outbound-ssh client nsm-10.85.34.46 10.85.34.46 port 7804
set system syslog file default-log-messages any any
set system syslog file default-log-messages structured-data
set interfaces ge-0/0/0 unit 0 family inet address 10.85.49.149/24
set routing-options static route 0.0.0.0/0 next-hop 10.85.49.1
set security zones security-zone trust interfaces ge-0/0/0.0 host-inbound-traffic system-services all

root>

    Click "Next" to Import Device Config into NSM.

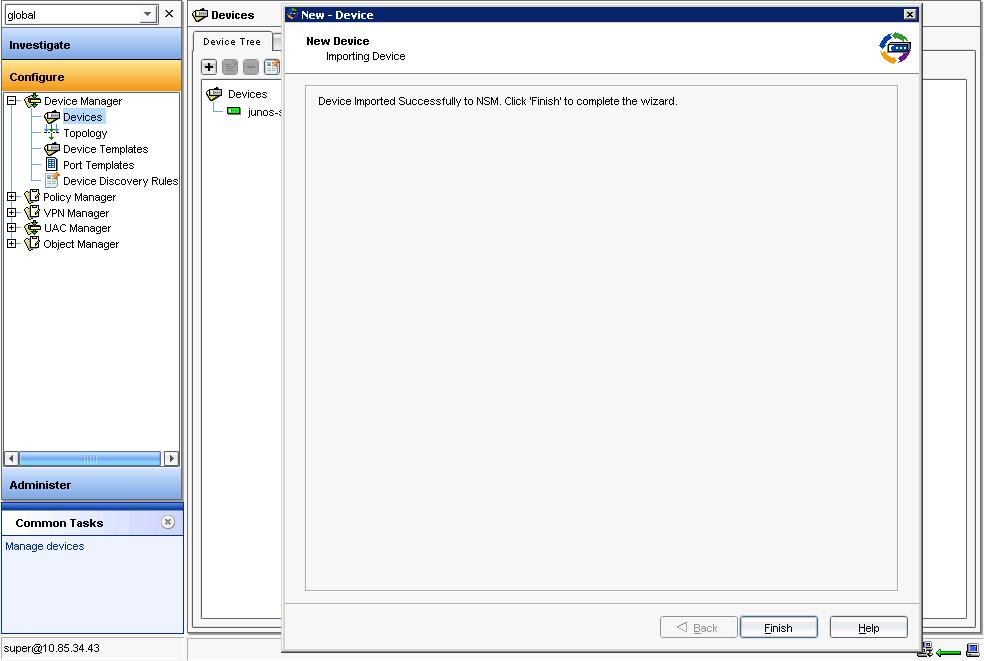

12. Click "Finish" once the device config has been imported:

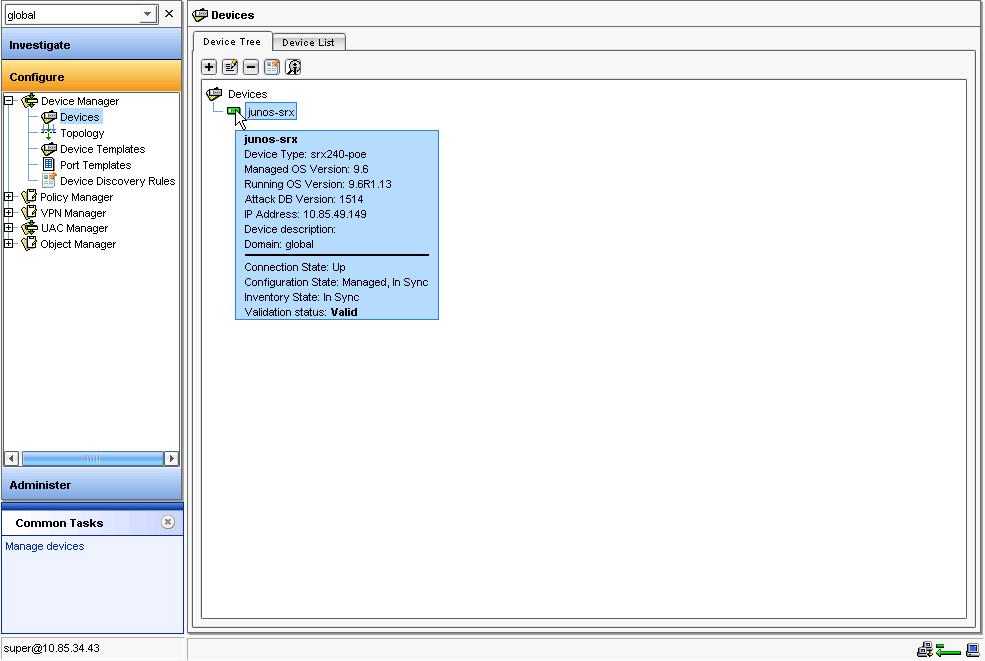

    Device is now imported into NSM and is managed and in-sync.
