This article explains how to setup an IDP policy on a new SRX firewall (any model), including an example that looks for all HTTP related attacks.

Take the steps below to configure an IDP policy on a brand new SRX firewall.

1. Login to the SRX firewall via CLI as admin user.

• Download the latest signature DB from the CLI by running the following command (make sure the firewall is setup with a valid DNS server IP address as the download of signature DB requires name lookup)

  CLI> request security idp security-package download full-update
CLI> request security idp security-package download status   (This command verifies the download status)

• Install the signature DB on to the control and data-plane by running the command:

  CLI>request security idp security-package install
CLI>request security idp security-package install status (This command verifies the install status)

• Run the following commands to setup the IDP policy in configuration edit mode.

  [edit]
#set security idp idp-policy HTTP-INSPECTION rulebase-ips rule 1 match attacks predefined-attack-groups "HTTP"
       (policy name: HTTP-INSPECTION, inspecting all HTTP signatures for any SRC and any DST)
  [edit]
#set security idp idp-policy HTTP-INSPECTION rulebase-ips rule 1 then action recommended
        (This command defines the action as recommended for any attack detected)
  [edit]
#set security idp idp-policy HTTP-INSPECTION rulebase-ips rule 1 then notification
       (This command defines notification to be sent out in case an attack is detected)

• Now the newly defined IDP policy needs to be setup as the active IDP policy.  Run the following command:

  [edit]
#set security idp active-policy HTTP-INSPECTION

• Commit the changes to load the policy.

  [edit]
#commit

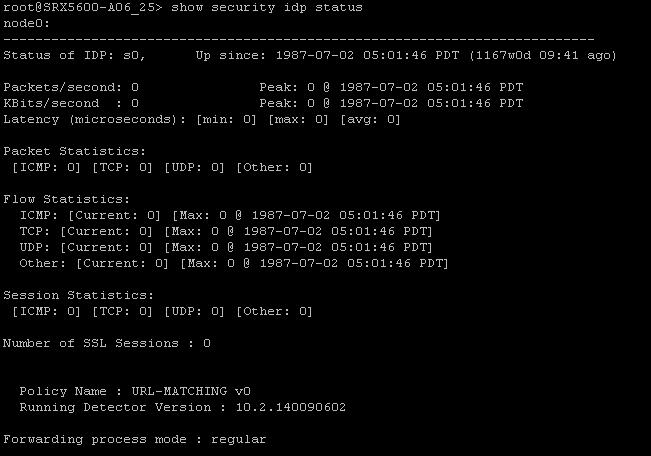

• Once configuration is committed, IDP policy load takes a few minutes depending on how many signature groups are included in the policy. The following command can be executed on the CLI to verify if the policy is loaded:

  CLI>show security idp status



• Enable IDP in a security policy:

  [edit]
# set security policies from-zone untrust to-zone trust policy untrust-to-trust match source-address any
[edit]
# set security policies from-zone untrust to-zone trust policy untrust-to-trust match destination-address any
[edit]
# set security policies from-zone untrust to-zone trust policy untrust-to-trust match application any
[edit]
# set security policies from-zone untrust to-zone trust policy untrust-to-trust then permit application-services idp



• When traffic hitting the configured policy is generated, detected attacks can be listed by running the following command on the CLI:

  CLI>show security idp attack table

• List of IDP features that are supported on SRX Series devices
• KB16561 - SRX Getting Started - Configure and Troubleshoot IDP on SRX. [juniper.net]
