All events are mapped to Pre-defined Unique Identifiers (QIDs). It could be necessary to create custom QIDs.

• Event Maps to wrong QID
• There are no QIDs for my events
• How to map Events to Custom QIDs

When an event is received, it is parsed and mapped to a QID (Unique ID that identifies type of event).  There might be some instances when these events are mapped incorrectly or there are no QIDs for the event type. In such situations custom QIDs can be created and events be mapped to them.

To Create a Custom QID

Identify the Low-Level Category under which you want to create the custom QID   The following example shows how to create a custom QID under a low-level category Authentication:

1. Login to the CLI and find the QID (first column) for the low-level category.

   [root@strm500-2 log]# /opt/qradar/bin/qidmap_cli.sh -l | grep Authentication
   3001        Unknown Authentication                                      Authentication
   3002        Host Login Succeeded                                        Authentication
   3003        Host Login Failed                                           Authentication
   3004        Misc Login Succeeded                                        Authentication
   3005        Misc Login Failed                                           Authentication
   3006        Privilege Escalation Failed                                 Authentication
   3007        Privilege Escalation Succeeded                              Authentication
   3008        Mail Service Login Succeeded                                Authentication
   3009        Mail Service Login Failed                                   Authentication
   3010        Auth Server Login Failed                                    Authentication
   3011        Auth Server Login Succeeded                                 Authentication

   [root@strm500-2 log]#

2. In the example below a new QIDMAP under Low-Level Category "Host Login Failed" is being created.

   (Note: for display purposes, the quidmap_cli.sh command below is shown on two lines.  When entering the command, enter it all on one line.)

   [root@strm2500-2 ~]# /opt/qradar/bin/qidmap_cli.sh -c --qname jtac_login_failed
   --qdescription JTAC_FAILED_LOGINS_QID --severity 2 --lowlevelcategoryid 3003
   Created entry:
           qid: 2000002
           name: jtac_login_failed
           description: JTAC_FAILED_LOGINS_QID
           severity: 2
           low level category id: 3003
           ratethreshold: 0
           catpipename: Echo
           rateshortwindow: 0
           ratelongwindow: 0
           reverseip: false
           rateinterval: 0


3. To verify custom QIDs created in the system, enter the following command:

   [root@strm2500-2 ~]# /opt/qradar/bin/qidmap_cli.sh -e
   2000002,jtac_login_failed,JTAC_FAILED_LOGINS_QID,2,3003
   2000001,jtac_login,JTAC_NEW_QID,2,3002
   [root@strm500-2 log]#

4. Now map the events to this new custom QID

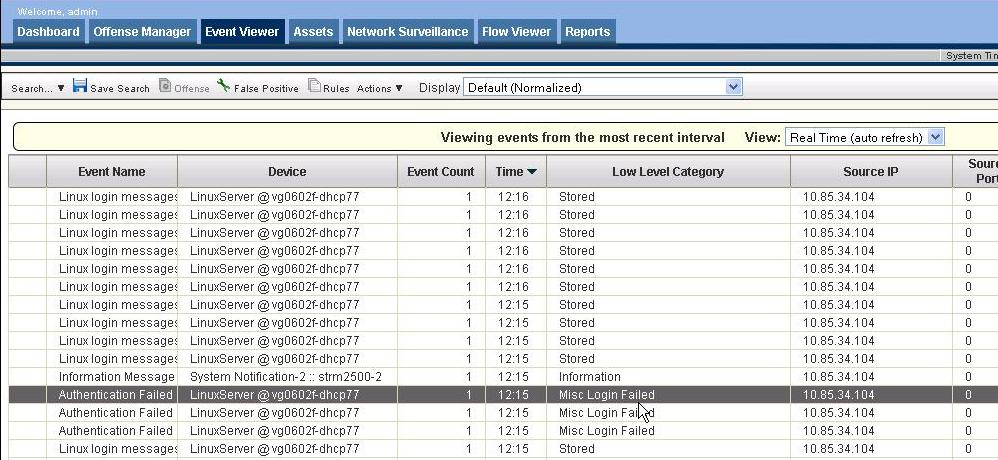

   • Login to the web UI
   • Select the Event you want to map and double-click to open it

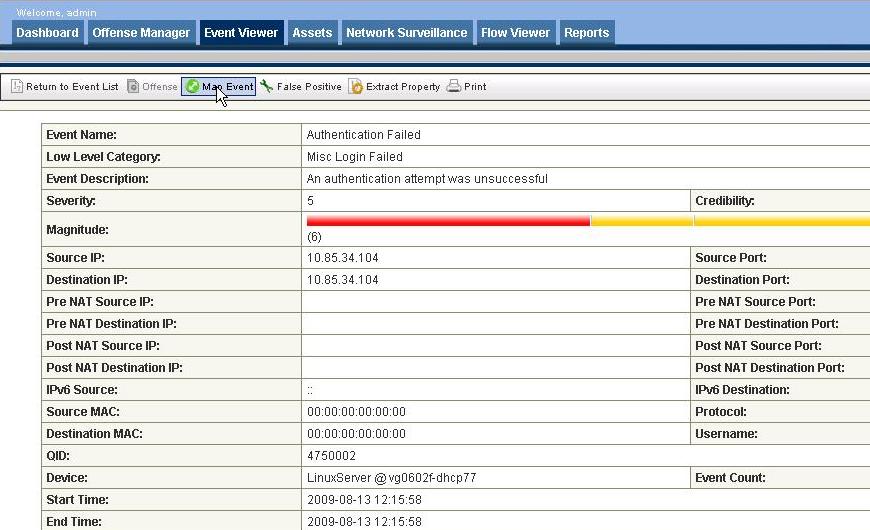

   • Open the event in the web UI and click on "Map Event"

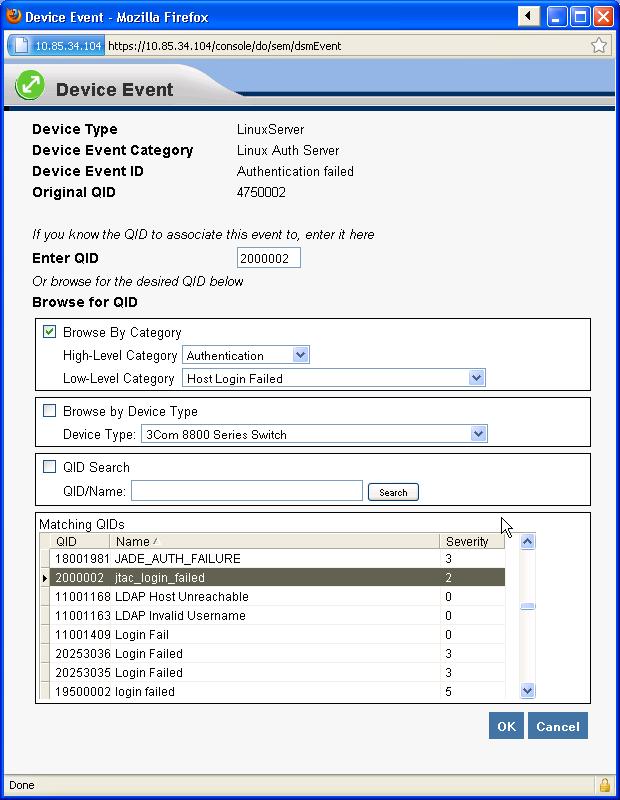

   • Map the event to new QID created from the CLI:


   • In this example, all new Events for "Linux Misc Login Failed " will be mapped to "Jtac_login_failed"

Note: Creation of new Low Level Categories is not possible at this time.  Additionally, use extreme caution when creating custom QIDs as they cannot be deleted via the web UI or with the script if a mistake is made. If you absolutely have to delete a QID, please open a service request with JTAC for further assistance via MyJuniper Service Request Manager (MYJ-SRM) .
