Description

This document describes an observed behavior where conductors fail to download the 7.0.1 software package when Software Repository Offline Mode is set to true. The intent is to clearly outline symptoms and provide recommended procedures to correct the condition.

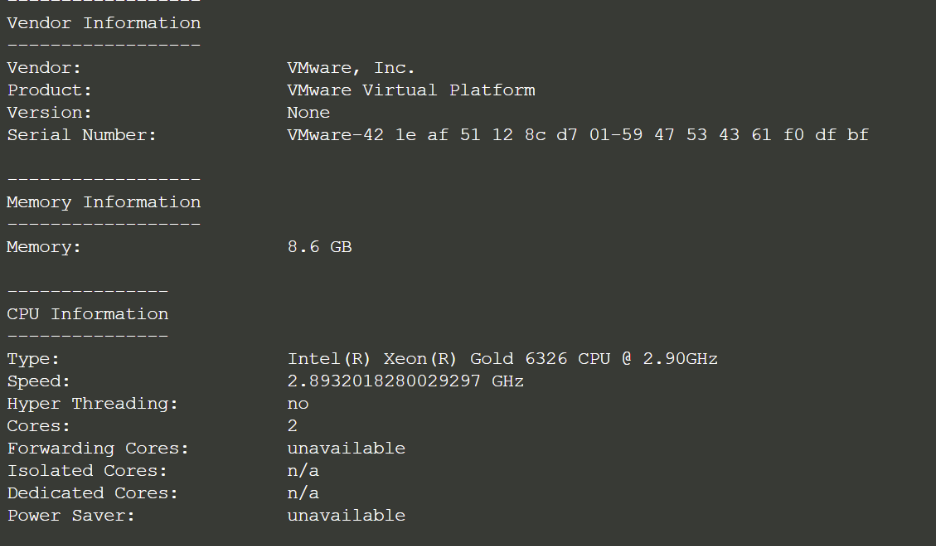

Models – This behavior has been observed on the following platform running 128T conductor software:

Symptoms

Following the upgrade to version 6.3.5, it has been observed that conductors may fail to download 7.0.x packages when Software Repository Offline Mode is set to true. This behavior is resolved by setting the “Software Repository Offline Mode” to False.

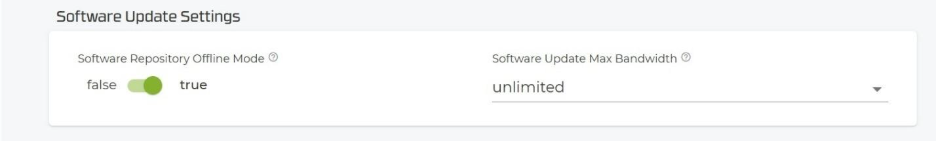

Conductor Configuration:

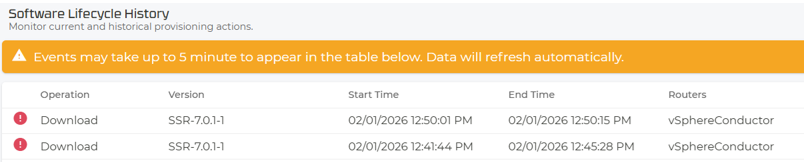

Error:

Solution

Recommended Procedure:

  1. If conductor is on a version older than 6.3.5, you must first upgrade to 6.3.5 before performing the upgrade to 7.0.1.
  2. If the 7.0.1 firmware download fails, ensure “Software Repository Offline Mode” is set to false.
  3. Download the 7.0.1 software package again.

Recommended Fix if Download Fails:

If the conductor fails during Step 2 of the recommended procedure, check the setting of “Software Repository Offline Mode” and change it to “False” if need be. To locate this setting, navigate to:

“Configuration” > "Authority" >
“Routers” > Select "conductor" >
"Router Settings" > “System Settings” >
"Software Update Settings" > "Software Repository Offline Mode" > toggle to “False”

Step by Step Guide of Fix:

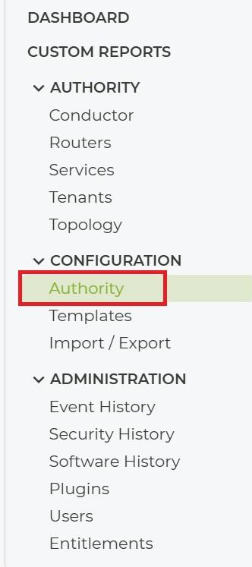

  • Navigate to “Authority” under the Configuration category in the Left-hand Menu:

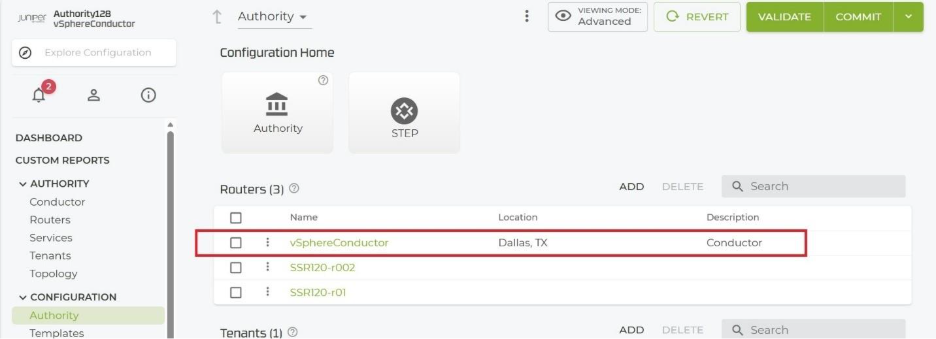

  • Select the conductor by clicking on its Name from within the Routers list:

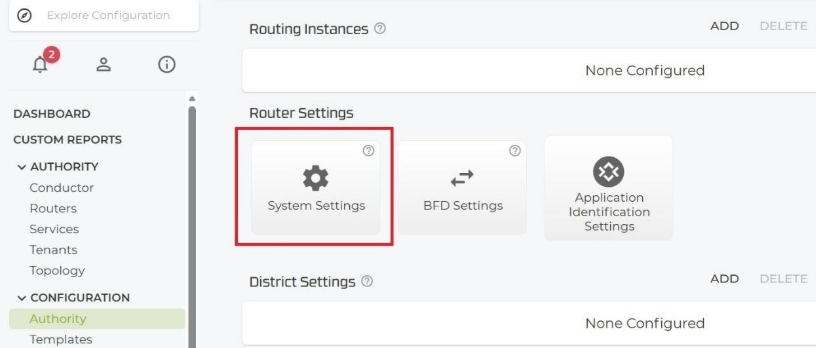

  • Navigate to “System Settings” found under Router Settings category

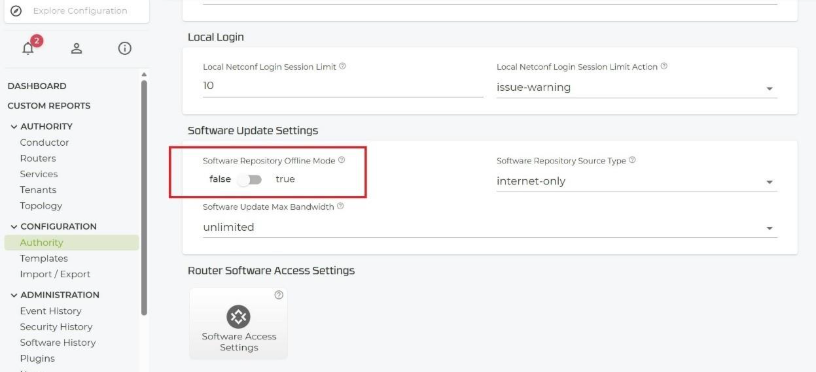

  • Scroll down to “Software Update Settings” category and toggle “Software Repository Offline Mode” to False

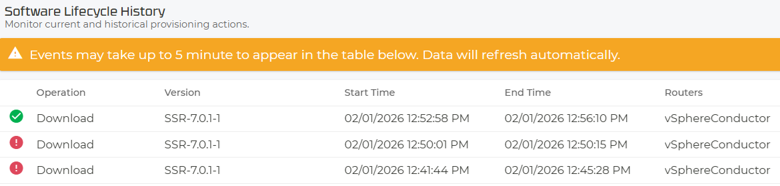

  • Download the 7.0.1 software package

Modification History

01-09-2026 Initial Draft
