This article explains how to configure PKI VPN modifications for SRX Series devices.

Follow the steps below to modify the IKE gateway from a pre-shared key to a certificate-based VPN:

From J-Web

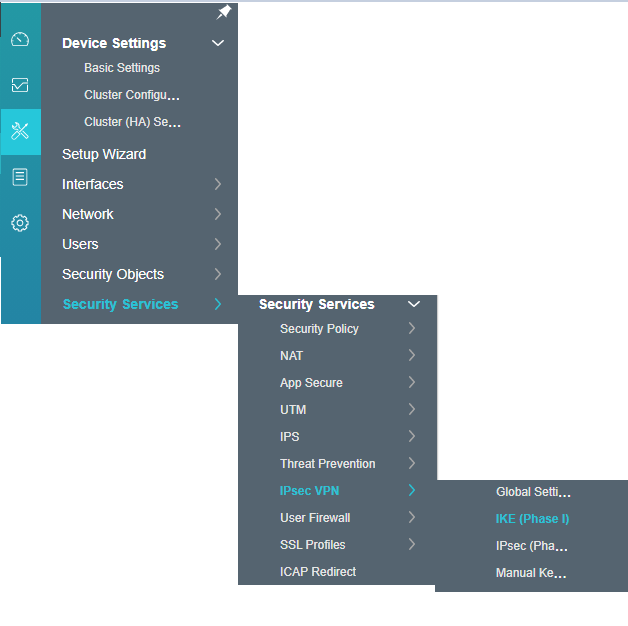

1. Navigate to Configuration > Security Services > IPSEC VPN > IKE Phase 1.

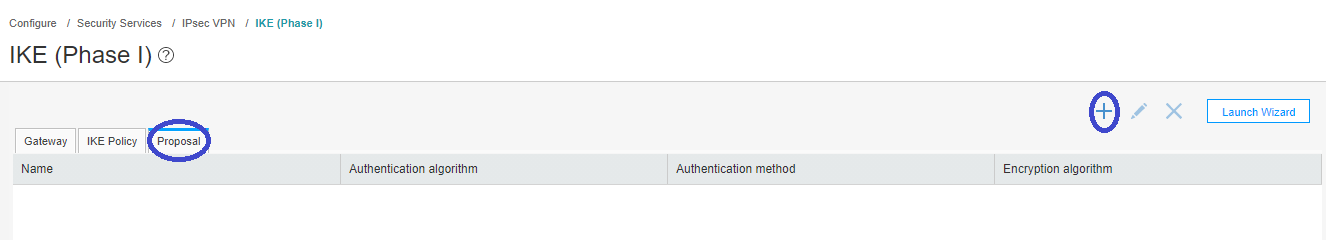

2. Click Phase 1. A dialog box with options to add to the Phase 1 configuration opens. Click Proposal > "+" on the right to create a new phase 1 proposal.

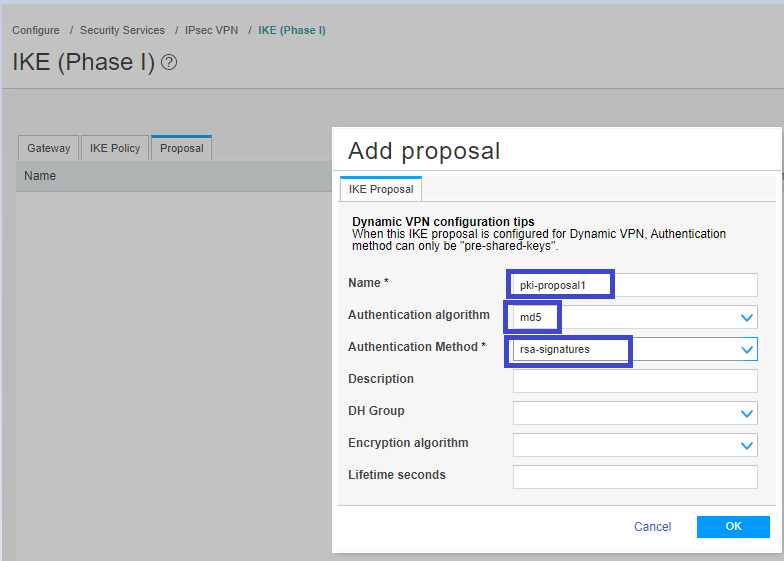

3. Enter Name . Change Authentication Method to rsa-signatures . Click OK .

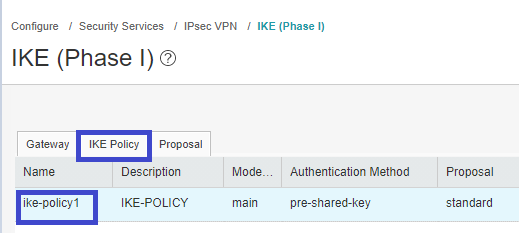

4. Click the IKE Policy tab, and then click the policy name to be edited.

5. Change the following settings:

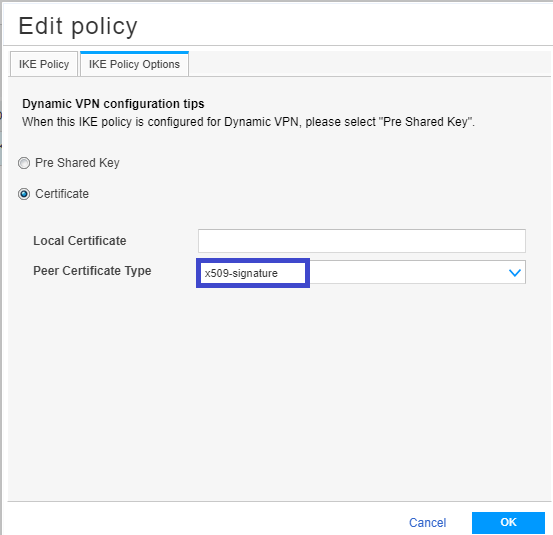

• Select Certificate (as opposed to pre-shared key).

• Be sure that Peer Certificate Type shows x509-signature.

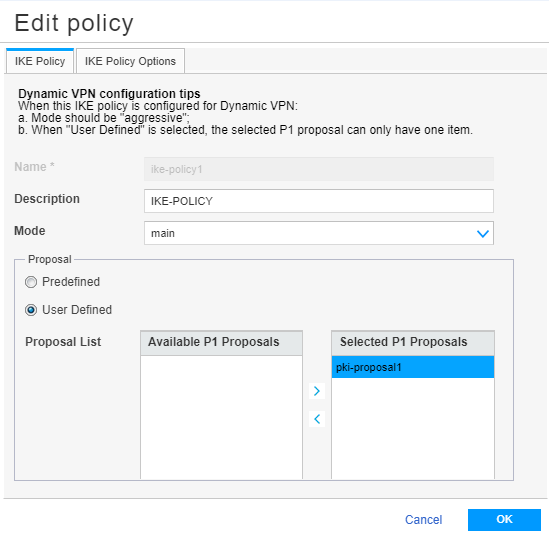

• For Proposal, select your RSA proposal that was created earlier from the drop-down list, and then click Add .

6. Click OK to return to the IKE configuration screen, then click OK again to exit the IKE screen.

From CLI

set security ike proposal pki-proposal1 authentication-method rsa-signatures
set security ike proposal pki-proposal1 dh-group group2
set security ike proposal pki-proposal1 authentication-algorithm md5
set security ike proposal pki-proposal1 encryption-algorithm 3des-cbc
set security ike policy ike-policy1 proposals pki-proposal1
set security ike policy ike-policy1 certificate trusted-ca use-all
set security ike policy ike-policy1 certificate peer-certificate-type x509-signature

• 2021-06-25: Updated the J-Web snippets as per the latest version and removed J-Series references
