This article provides information on how to create a Secure Tunnel (st0) interface on an SRX Series device.

Secure tunnel (st0) interfaces are used in the creation of route-based VPNs.

To configure a secure tunnel (st0) interface, perform the procedure below (an st0.0 interface will be created).

Via the CLI

set interfaces st0 unit 0 family inet address 10.11.11.10/24

Via J-Web

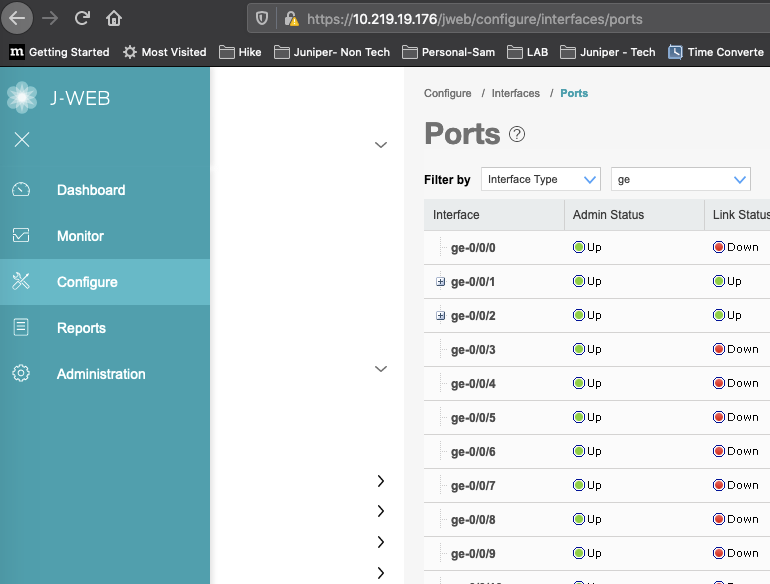

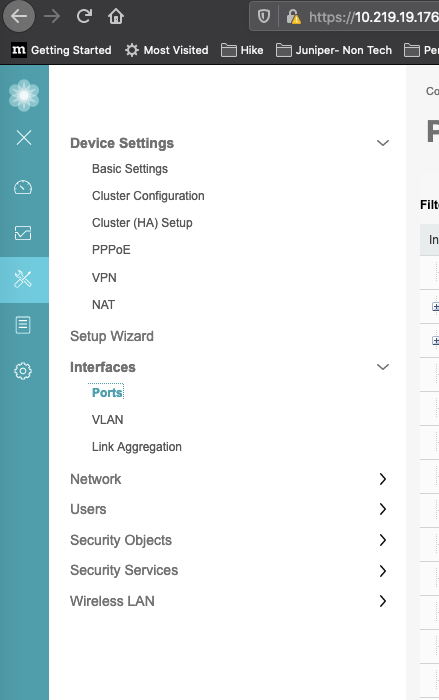

  Go to Configuration >Device setting

  Click Interfaces > Ports .

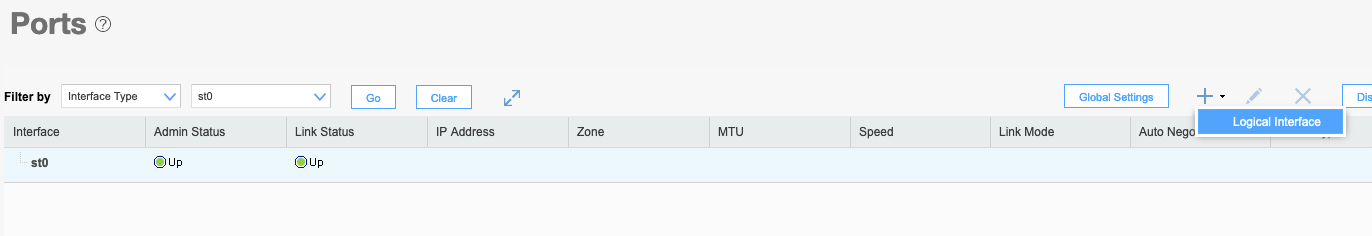

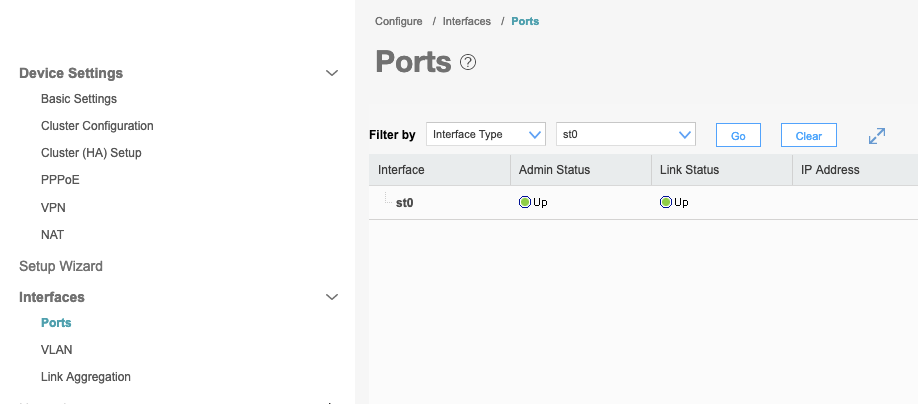

  Select  Filter by " Interface type"  "st0" and Click "Go"

  Select  st0 and click  + and select "  logical interface"   .

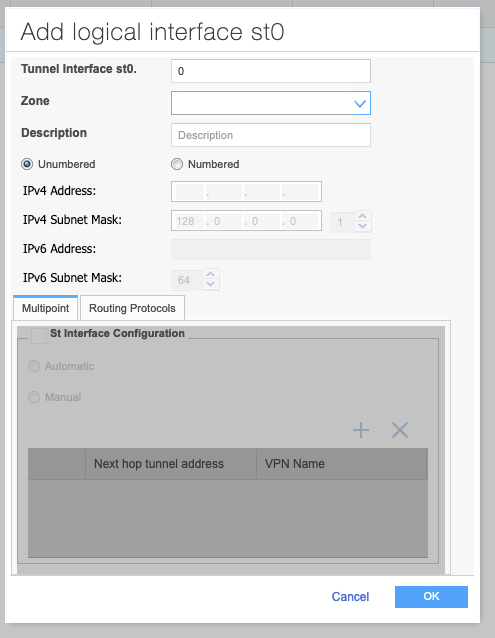

  Fill in details like Unit , IP address , Zones  and click OK

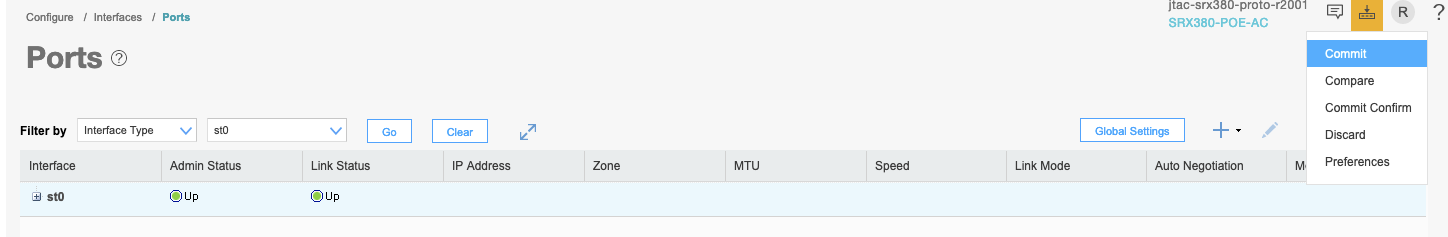

  Commit the change .

The interface is now ready to be bound to an IPsec VPN.

2020-06-30: Updated J-Web screen shots.
