Configuring the Junos Traffic Log on a J Series or SRX Series device can be useful for tracking usage patterns of a particular policy.
This article applies to J Series and SRX devices running Junos 10.0 and above.
J Series and SRX Series devices provide traffic logs to monitor and record the traffic that policies permit across zones. A traffic log notes the following elements for each session:
In addition, a session-close log will also display a close reason value. Refer to the Junos documentation for possible reason values. To log traffic that a J Series or SRX Series device receives, enable the log option for all policies of interest. Traffic logs are normally entered only after a session for the particular policy has closed. However, the option to start logging at session initiation is also available. Logging session-init will not show bytes sent/received or duration, but it can be useful for troubleshooting purposes to confirm when a session is first created.

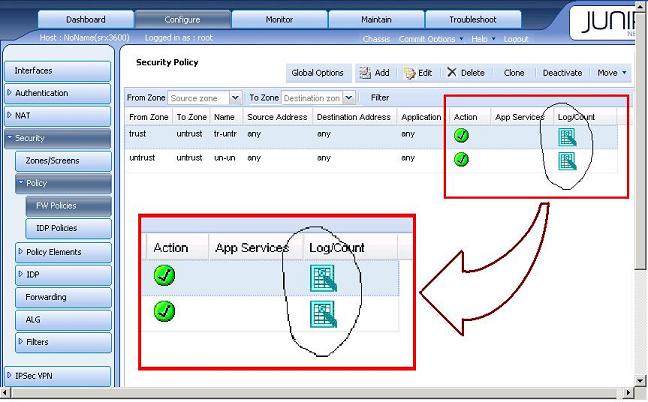

From J-Web: Navigate to Configuration > Security > Policies > FW Policies . Choose the From Zone and To Zone policies to be logged. Click on the policy for which you would like to enable logging. Click on the EDIT button at the top Check the box to Log at Session Close Time and/or Log at Session Init Time depending on what you output is required. Log at Session Close Time will not show any log outputs until the session either closes or ages out. Click OK . Once the logging is enabled, you will see the small Green Icon as shown under From CLI: set security policies from-zone trust to-zone untrust policy permit-all match source-address any set security policies from-zone trust to-zone untrust policy permit-all match destination-address any set security policies from-zone trust to-zone untrust policy permit-all match application any set security policies from-zone trust to-zone untrust policy permit-all then permit source-nat interface set security policies from-zone trust to-zone untrust policy permit-all then log session-init set security policies from-zone trust to-zone untrust policy permit-all then log session-close
set security policies from-zone trust to-zone untrust policy permit-all match source-address any set security policies from-zone trust to-zone untrust policy permit-all match destination-address any set security policies from-zone trust to-zone untrust policy permit-all match application any set security policies from-zone trust to-zone untrust policy permit-all then permit source-nat interface set security policies from-zone trust to-zone untrust policy permit-all then log session-init set security policies from-zone trust to-zone untrust policy permit-all then log session-close

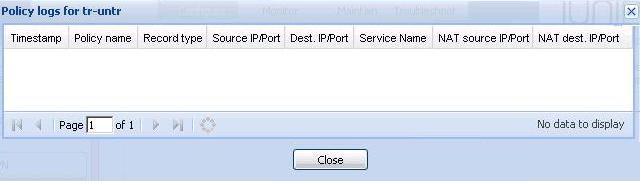

From J-Web: Navigate to Events > View Events . All traffic logs are located within messages log. However, the messages log captures much more than just traffic logs. To ease viewing of the logs, filter for only specific message descriptions. Refer to KB19490 - How to enable and view traffic logs in J-Web/GUI for SRX devices [juniper.net] Regular expressions can be used to filter the log output. For traffic logs, use “ session-init|session-close ” within the Text in Event Description field. Note that for 9.5 and later versions of Junos and all SRX branch platforms, use " RT_FLOW_SESSION " instead as the logging output has changed. The pipe ( | ) symbol means either “session-init” or “session-close” will match the filter and be displayed. You can configure a separate log dedicated to only capture traffic logs. From CLI: The below CLI command will show the messages log and filter for only entries that contain "session-init" and session-close" (pre 9.5 on J-Series) within the description or RT_FLOW_SESSION (9.5 and later and SRX): show log messages | match "session-init|session-close" or show log messages | match RT_FLOW_SESSION Below is an example of the output and the meaning of each section: Message type Src IP/port Dest IP/port ------------ --------------- ------------ session-close- 172.19.51.171/1259 -> 10.10.10.10/23, Proto Sess ID Pol ID Bytes Sent/Recv Duration ----- ------- ------ --------------- -------- 6(0), sid=1341, pid=5, 4791/5428(183), 230 sec (83252)
Navigate to Events > View Events . All traffic logs are located within messages log. However, the messages log captures much more than just traffic logs. To ease viewing of the logs, filter for only specific message descriptions. Refer to KB19490 - How to enable and view traffic logs in J-Web/GUI for SRX devices [juniper.net] Regular expressions can be used to filter the log output. For traffic logs, use “ session-init|session-close ” within the Text in Event Description field. Note that for 9.5 and later versions of Junos and all SRX branch platforms, use " RT_FLOW_SESSION " instead as the logging output has changed. The pipe ( | ) symbol means either “session-init” or “session-close” will match the filter and be displayed. You can configure a separate log dedicated to only capture traffic logs.
The below CLI command will show the messages log and filter for only entries that contain "session-init" and session-close" (pre 9.5 on J-Series) within the description or RT_FLOW_SESSION (9.5 and later and SRX): show log messages | match "session-init|session-close" or show log messages | match RT_FLOW_SESSION Below is an example of the output and the meaning of each section:
show log messages | match "session-init|session-close" or
show log messages | match "session-init|session-close"
show log messages | match RT_FLOW_SESSION
Message type Src IP/port Dest IP/port ------------ --------------- ------------ session-close- 172.19.51.171/1259 -> 10.10.10.10/23, Proto Sess ID Pol ID Bytes Sent/Recv Duration ----- ------- ------ --------------- -------- 6(0), sid=1341, pid=5, 4791/5428(183), 230 sec (83252)
