Description

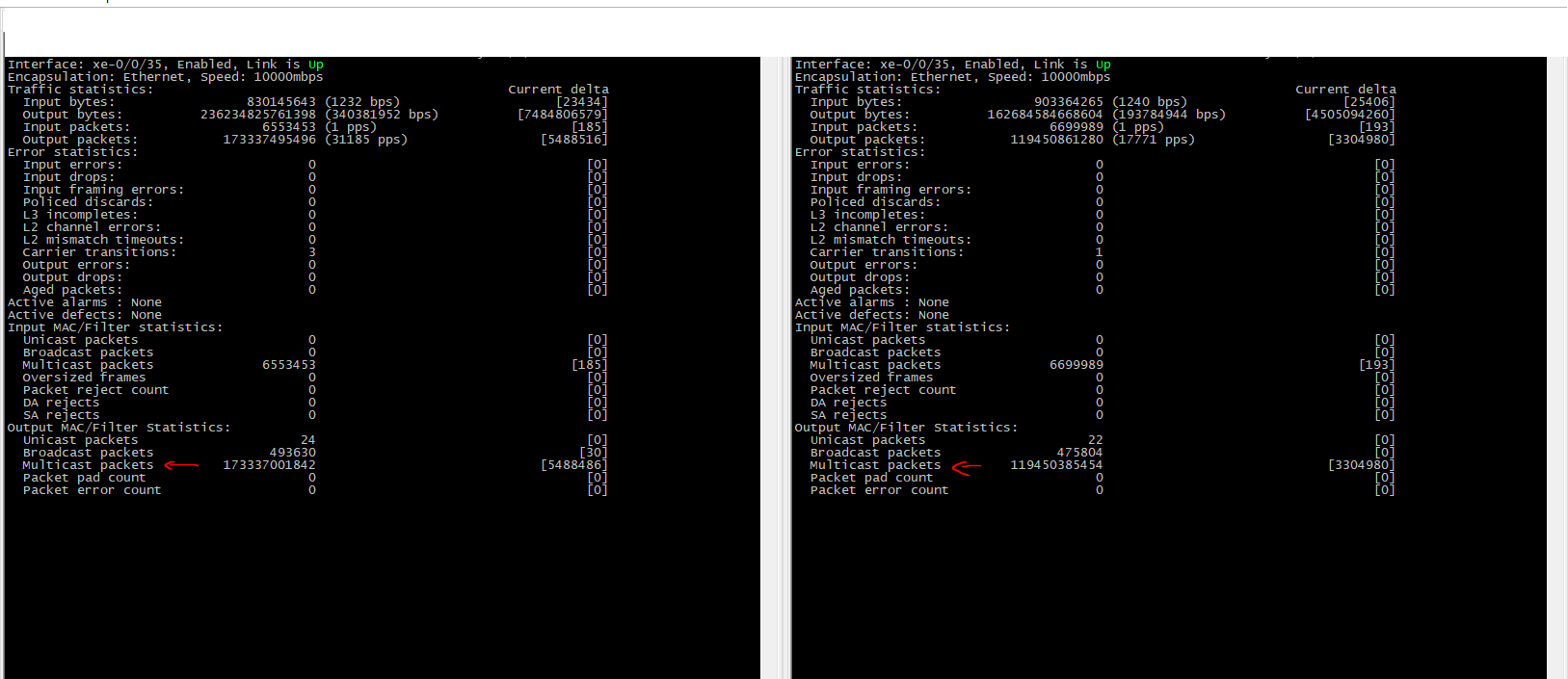

Observing multicast replication on both member of ESI interfaces.



admin@Leaf-A> show interfaces ae36.0 extensive | match EVPN



Protocol eth-switch, MTU: 9216, Generation: 223, Route table: 9, Mesh Group: __all_ces__, EVPN multi-homed status: Forwarding, EVPN multi-homed ESI Split Horizon Label: 0, Next-hop: 1822,





admin@Leaf-B> show interfaces ae36.0 extensive | match EVPN



Protocol eth-switch, MTU: 9216, Generation: 225, Route table: 9, Mesh Group: __all_ces__, EVPN multi-homed status: Blocking BUM Traffic to ESI, EVPN multi-homed ESI Split Horizon Label: 0,



Solution

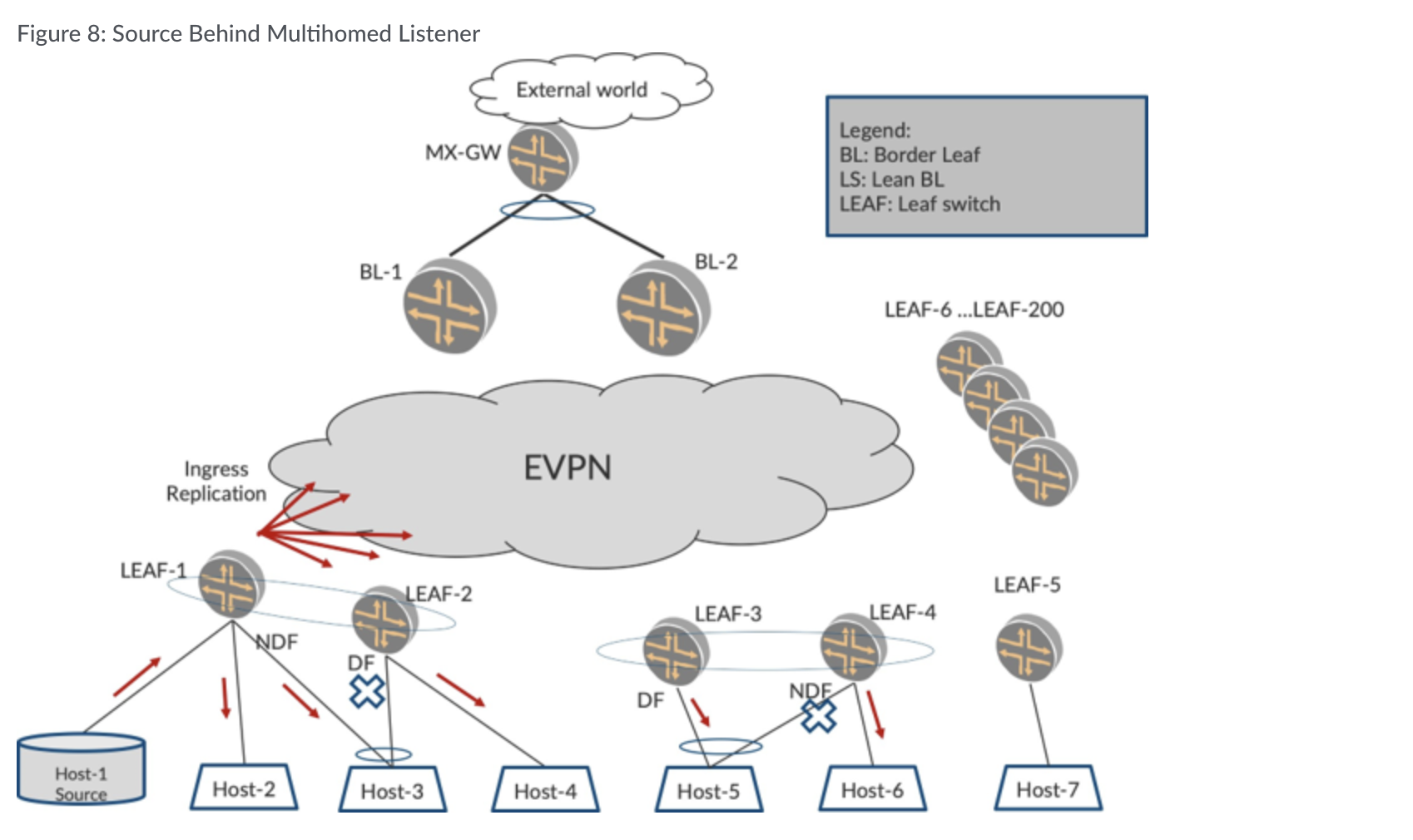

This is expected behavior for multicast traffic that is not receiving from vtep/upstream/core interfaces as illustrated in the following



Here, LEAF-1 performs the actions below:

  • Does not send the traffic back to Host-1 (ACCESS-SPLIT-HRZN)
  • Ingress Replicates traffic to all remote PEs over VTEP (CORE-IMET-FWD)
  • Does not send to LEAF-5 as no Type-3 for VLAN-101. (CORE-IMET-SKIP)
  • Sends traffic to Host-2 since it is single-homed interface (SH-FWD)
  • Sends to Host-3, though it is NDF and it is access traffic (SRC-LOCAL-BIAS)


Modification History

2025-07-21 : Article Created
